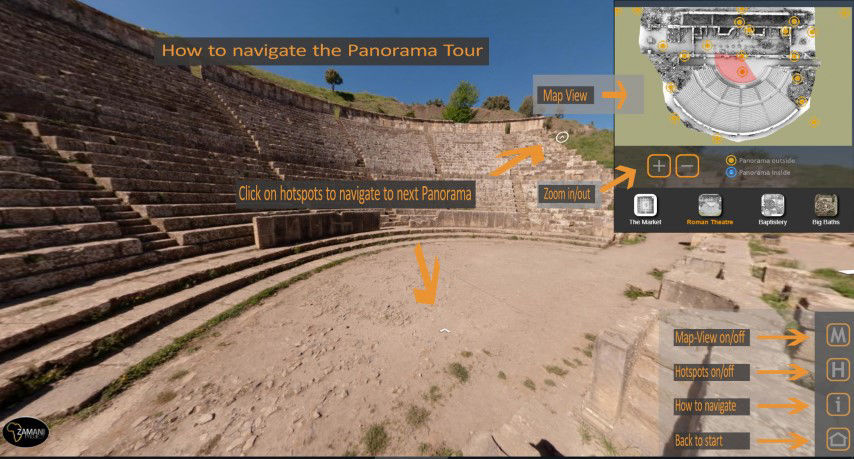

Panorama Tour of Djemila
Full dome panoramas capture a full 360-degree view from a single position. Individual full dome panoramas can be merged into a panorama tour, which allows a user to freely move from one panorama position to another.
ANCIENT BERBERO-ROMAN CITY
ALGERIA

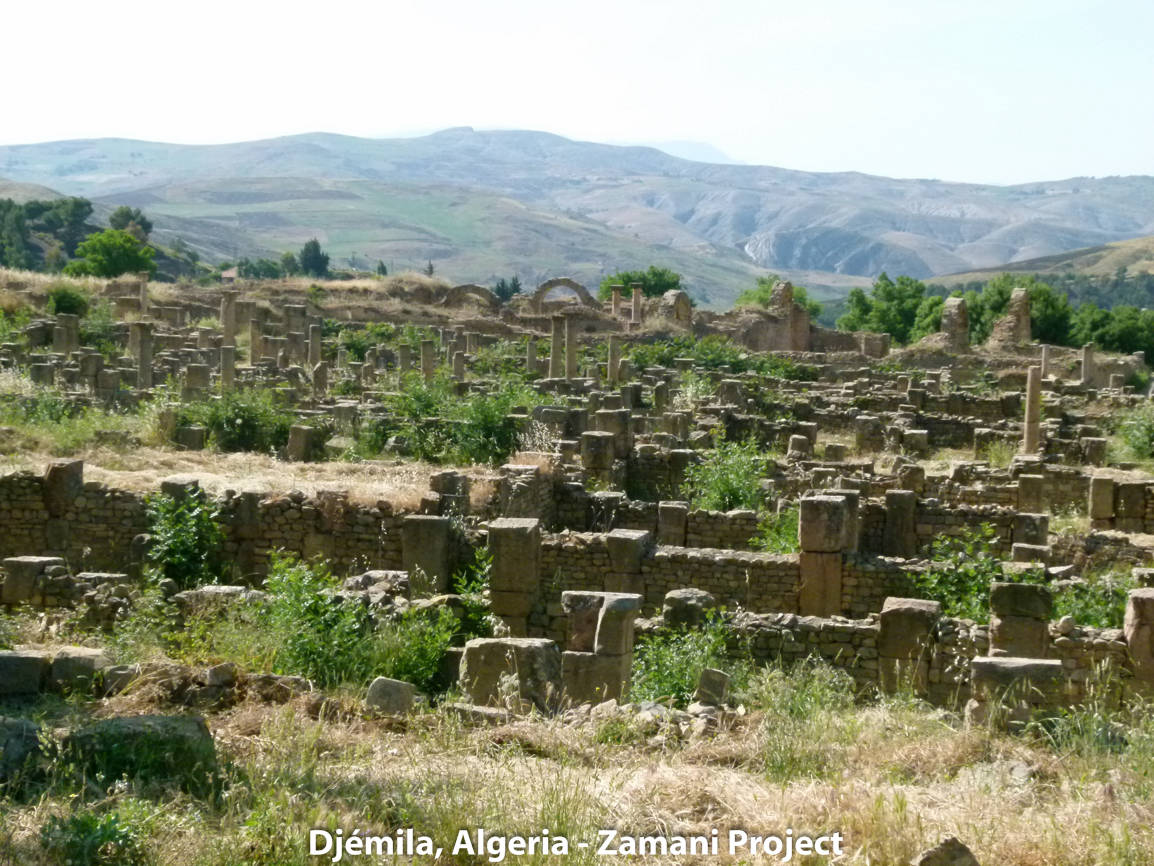

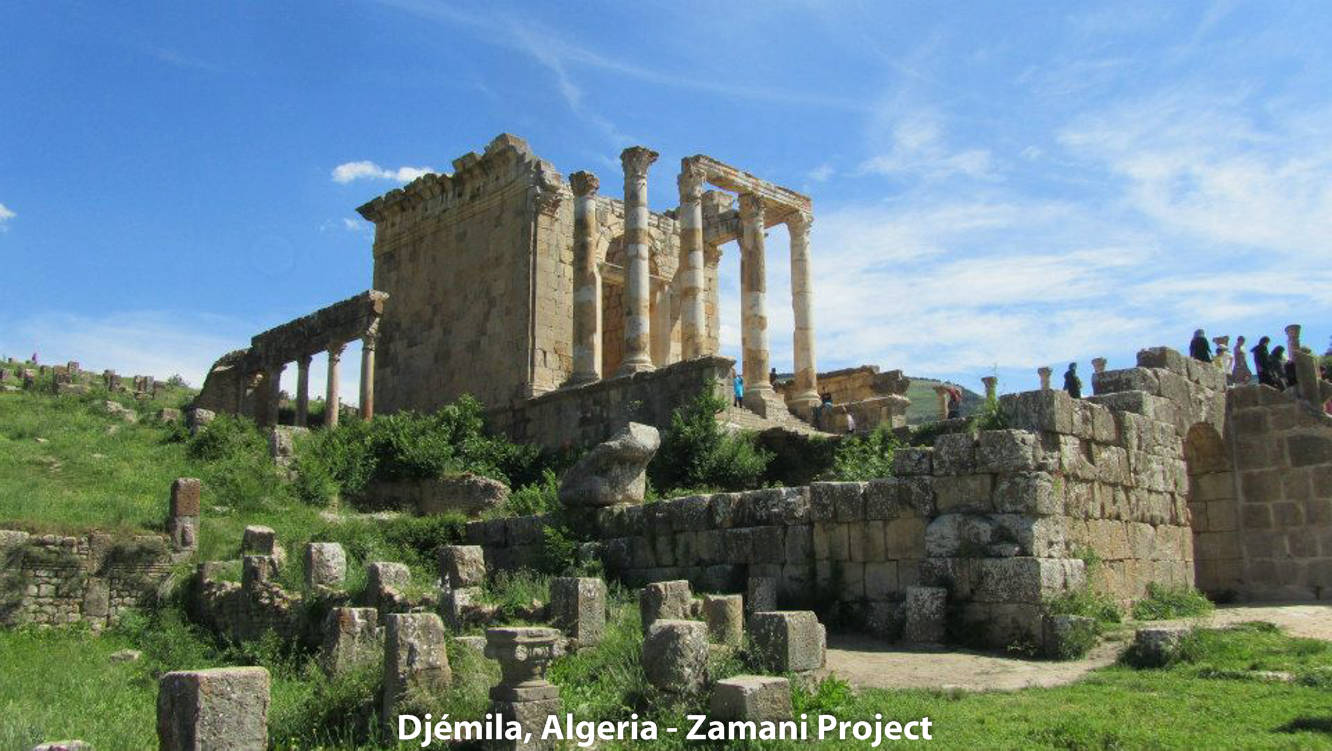

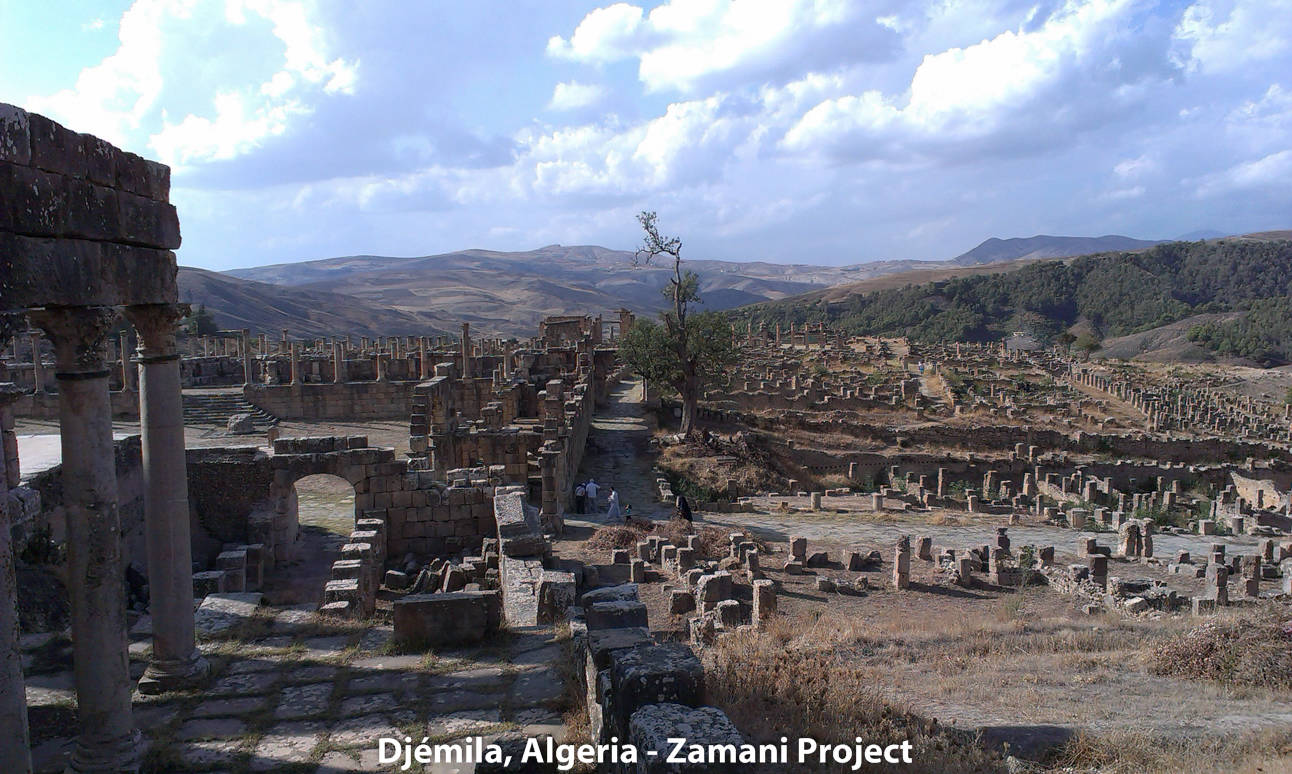

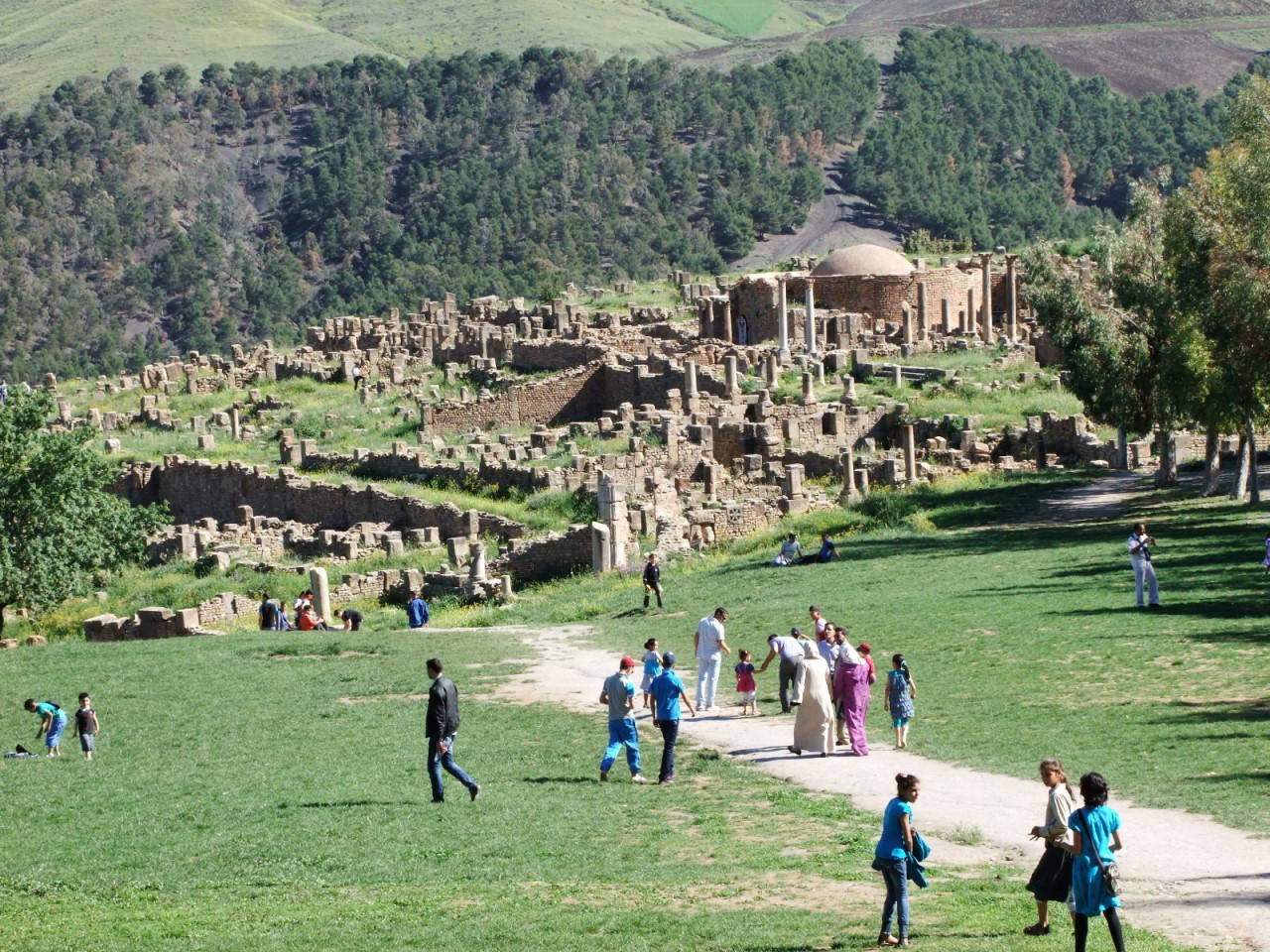

The Roman town, known by its ancient Berber name Cuicul, and now referred to as Djemila after the nearby town of Djemila contains some of the best preserved Berbero-Roman monuments in North Africa.

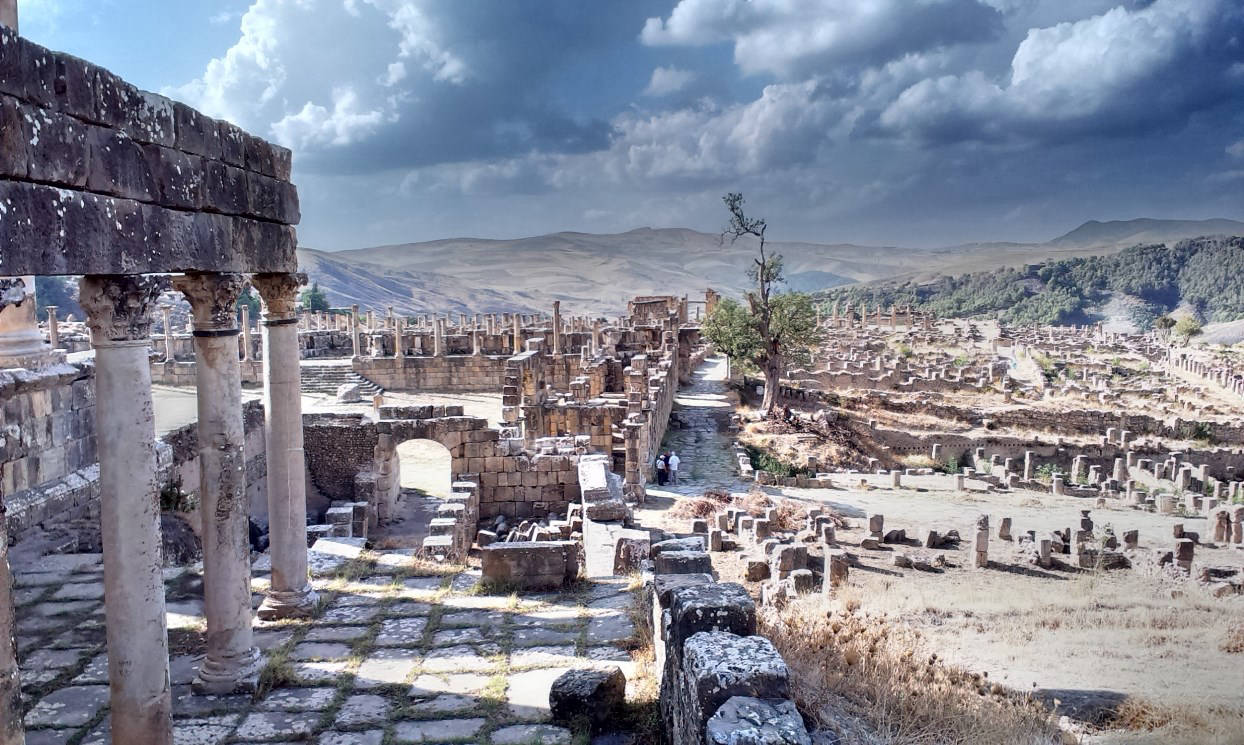

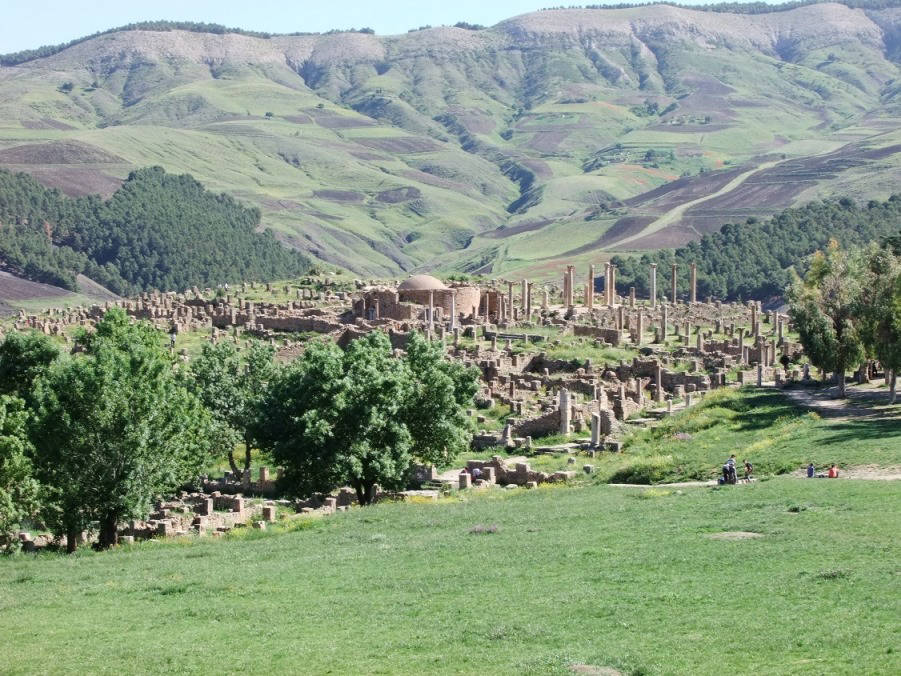

Cuicul was founded by the Roman emperor Nerva in the first century AD, and is a fascinating example of Roman town planning adapted to a mountain location. The site is 900 metres above sea level, and situated on a rocky spur between two wadis. Djémila is a UNESCO World Heritage Site.

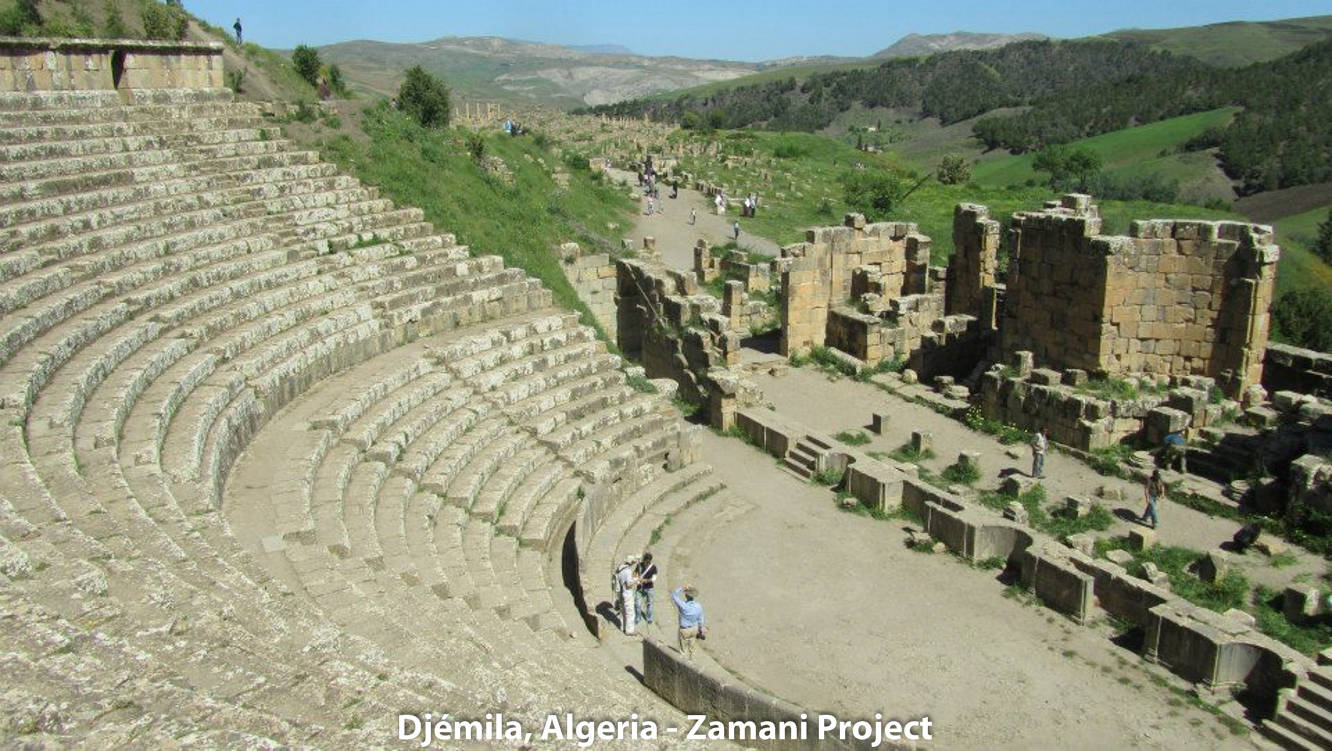

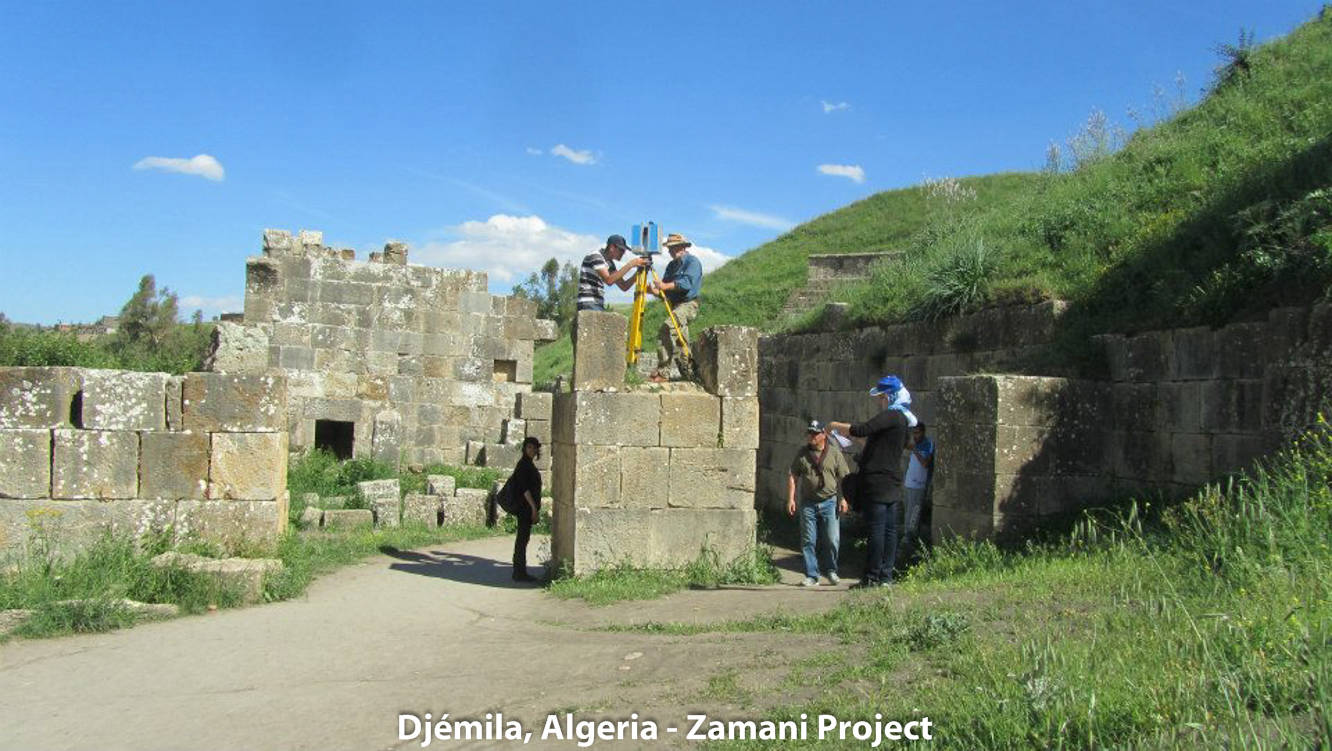

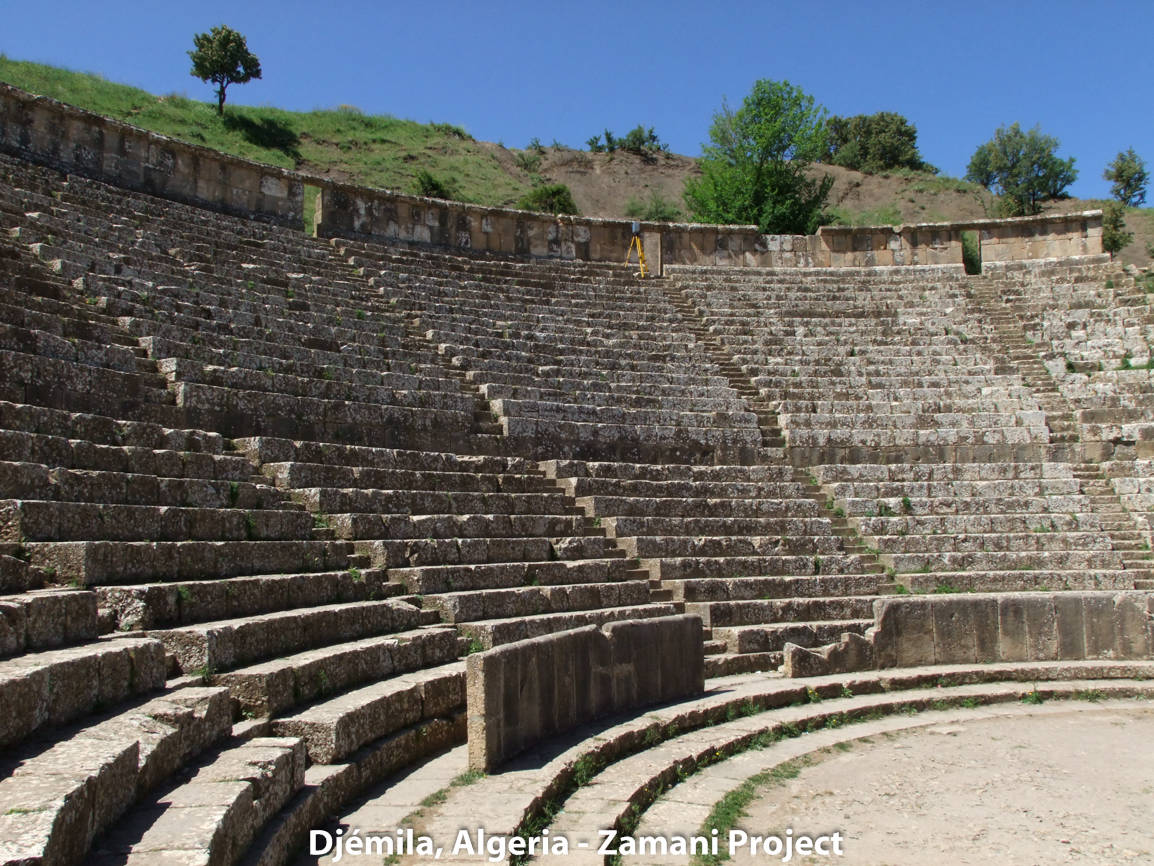

The spatial documentation of Djémila took place during two Zamani Project field campaigns in 2013 and 2014. Several structures were spatially documented, including the Baptistry, the Caracalla Gate, the Market, the temple of Septimius Severus and the Theatre.
The documentation was executed in co-operation with Prof Hamza Zeghlache and his team from the University of Setif, Algeria.
> South African National Research Foundation (NRF)
> The Saville Foundation
> Prof. Hamza Zeghlache (University of Setif)

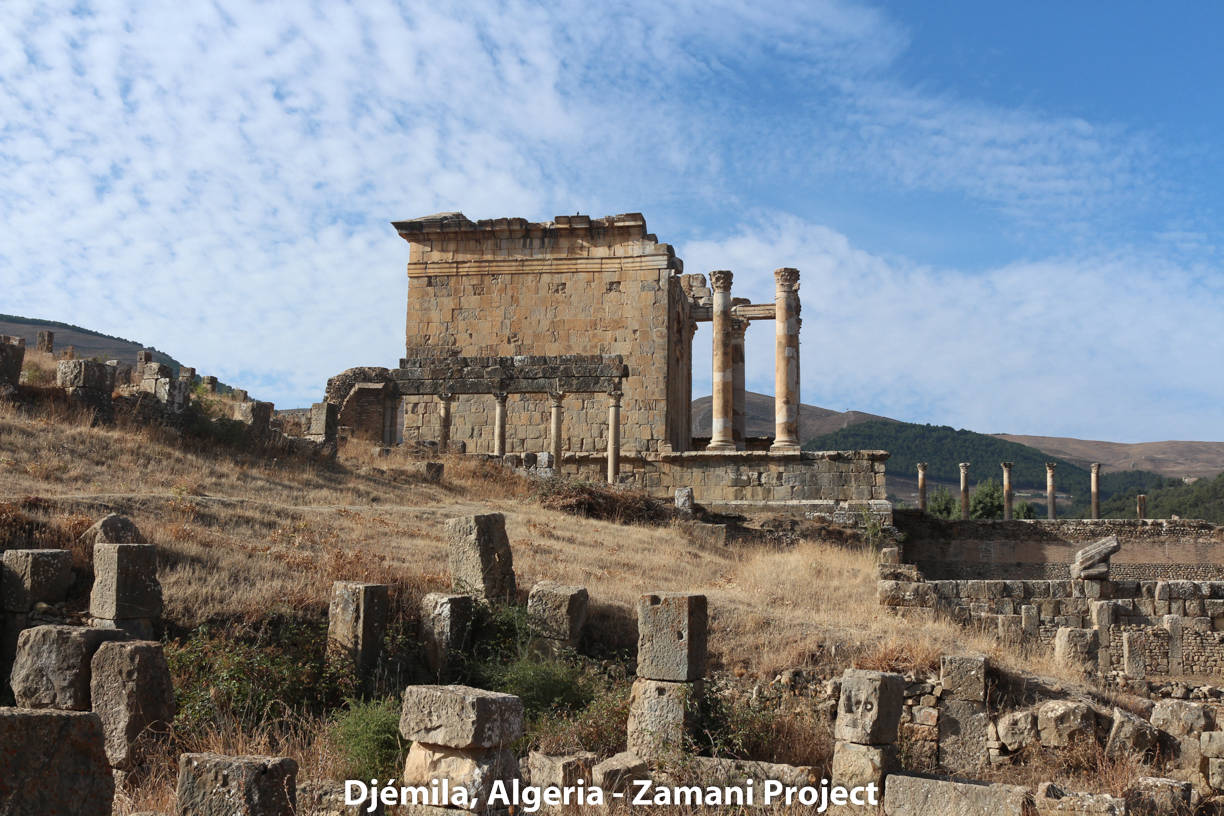

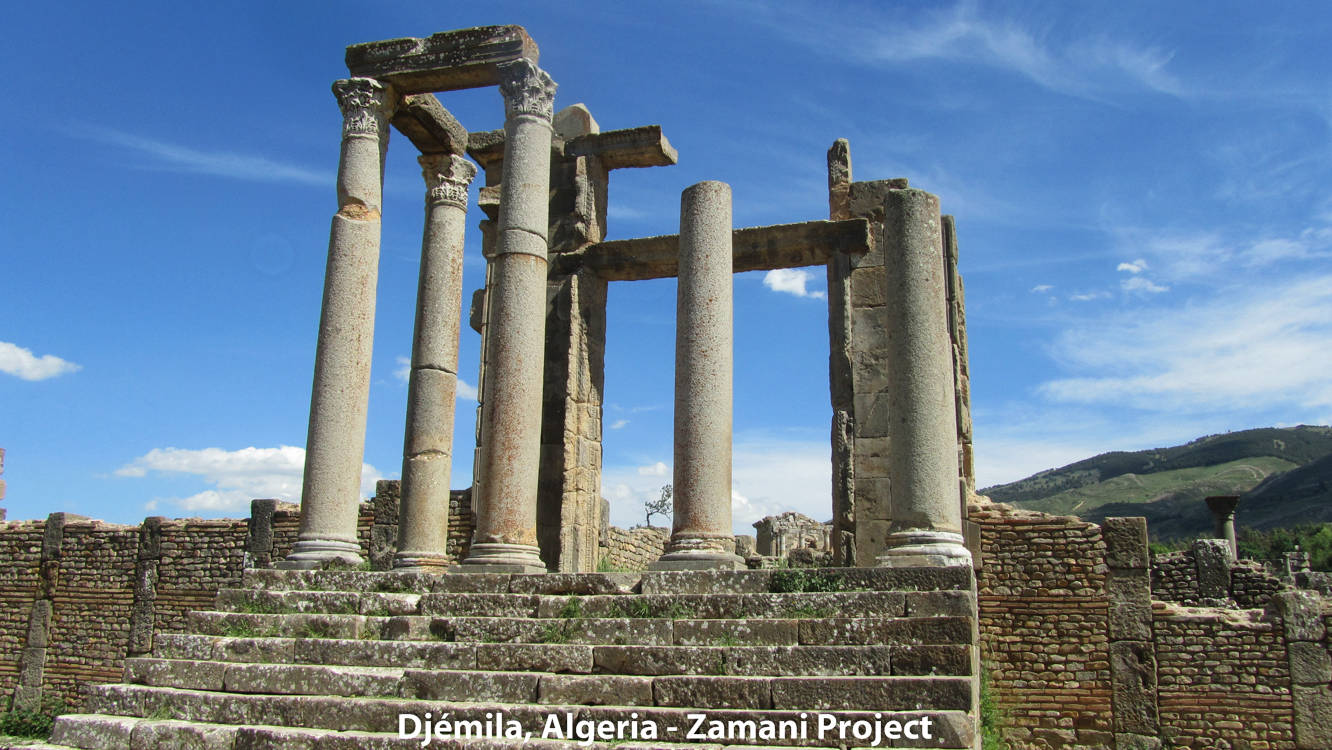

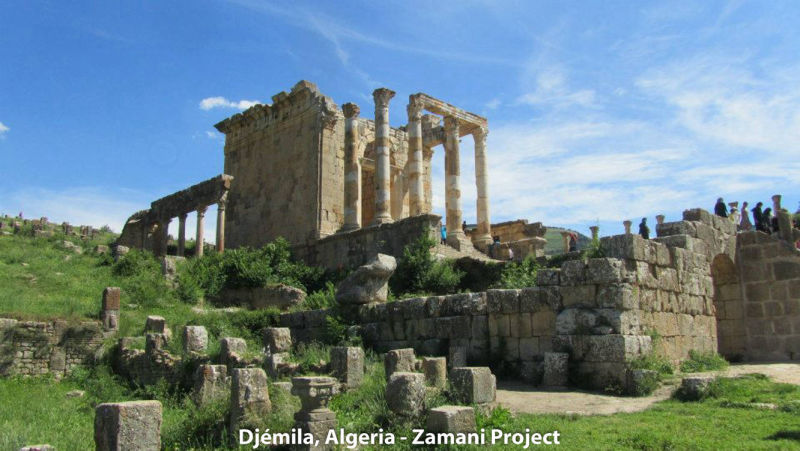

The Septimius Severus Temple located in Djemila (Cuicul), Algeria. A UNESCO World Heritage Site.
97 laser scans were captured of this structure to create the 3D model.
72 laser scans were captured of this structure to create the 3D model.

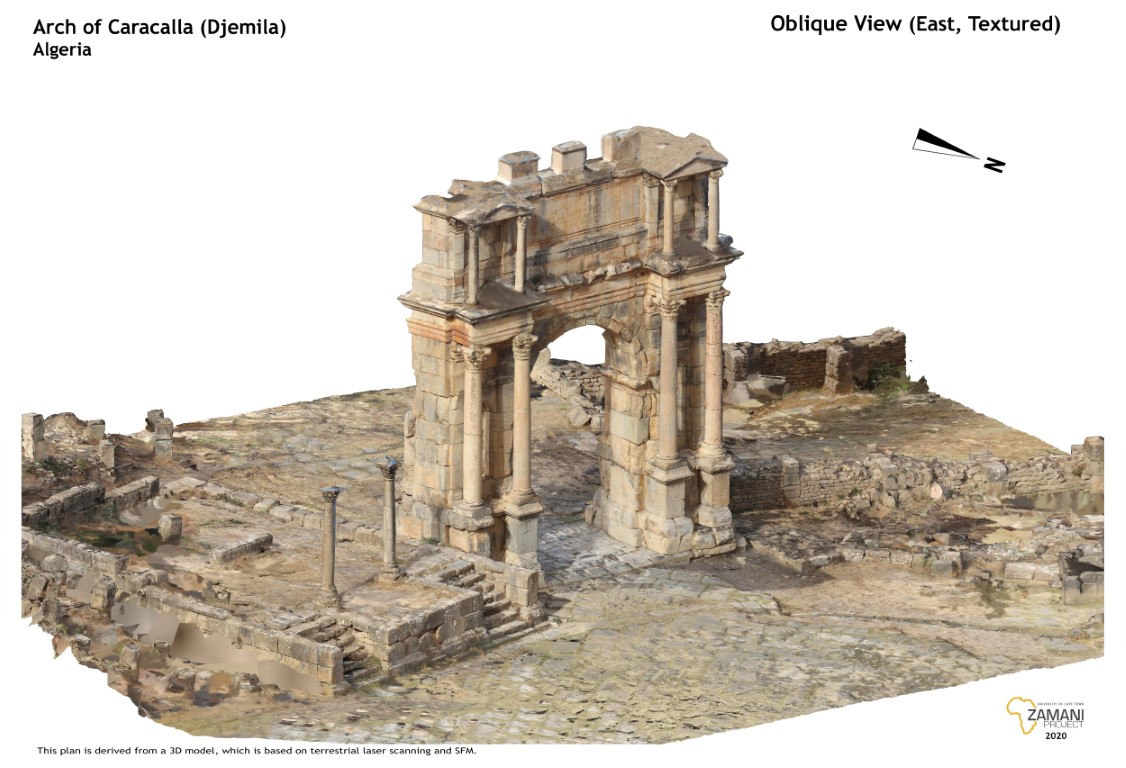

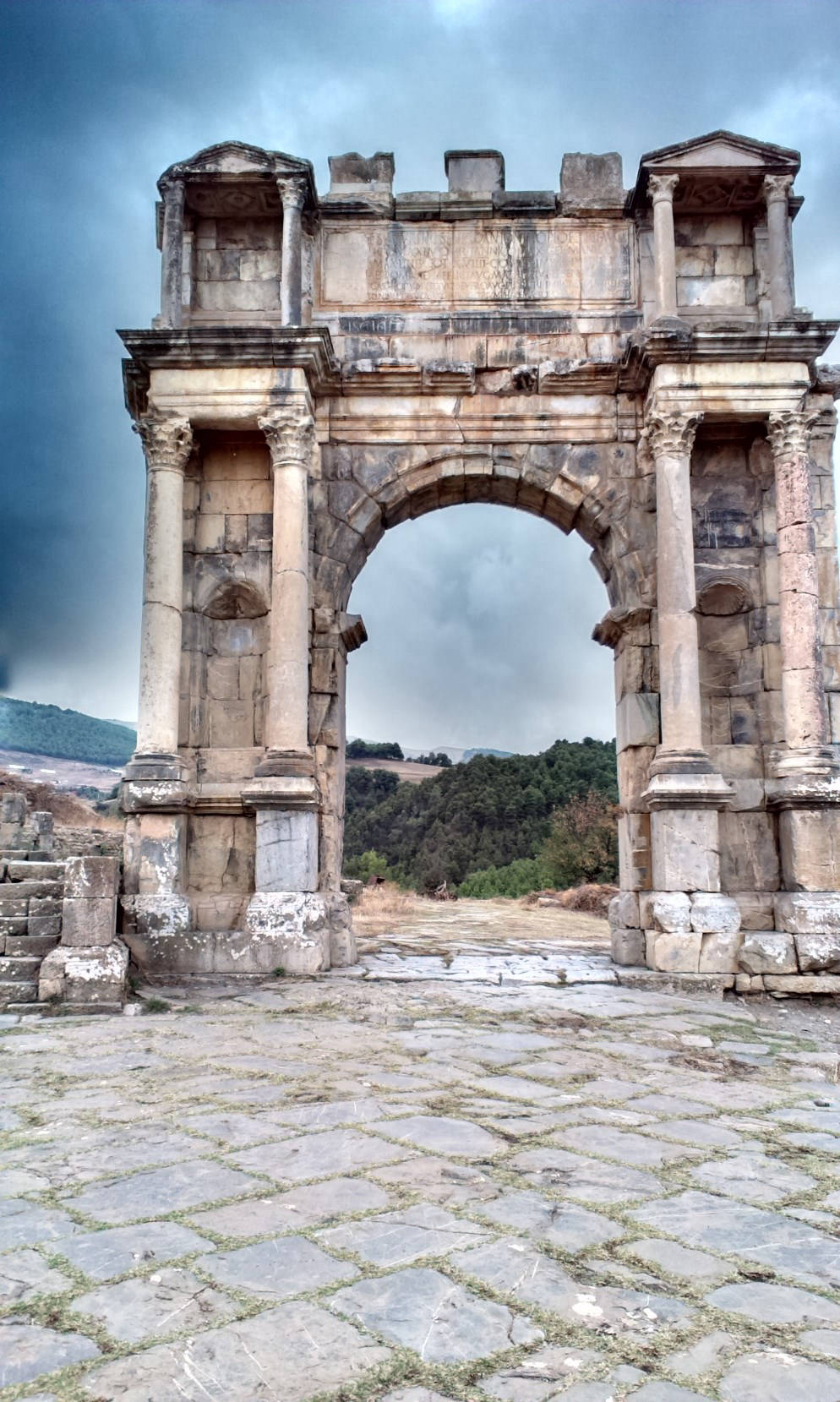

The Arch of Caracalla is a Roman triumphal arch located at Djémila in Algeria. It was built during the early 3rd century. The arch is surrounded by the monuments of the ancient city of Djémila.

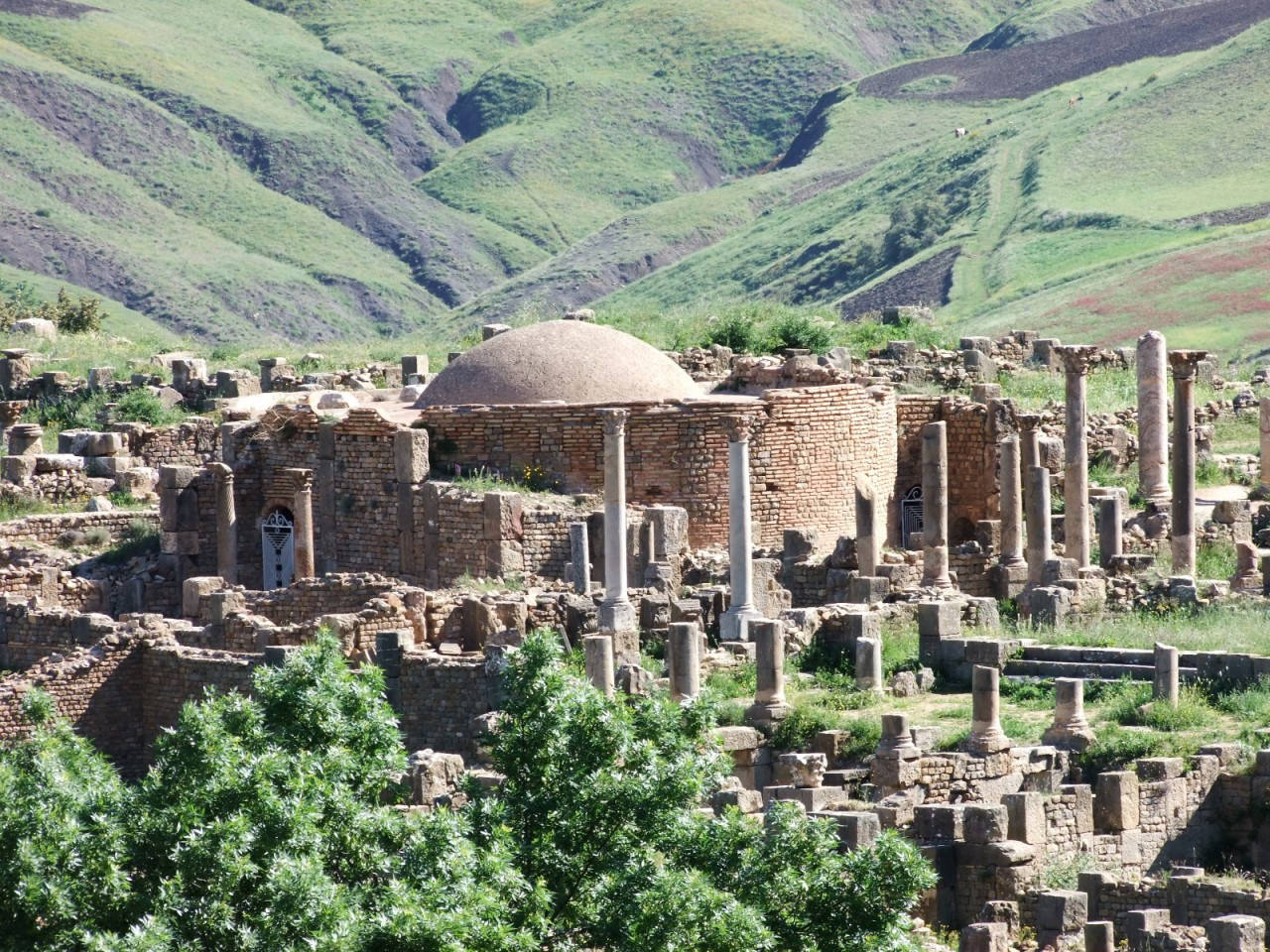

The circular domed structure of the baptistery is one of the earliest Christian buildings in Norther Africa. The building at Djemila is attached to thermae, a small basilica and two open courtyards. Presumably, all these spaces provided settings for rites that preceded or complemented Baptism. ca. June 1983 (www.repository.library.georgetown.edu)

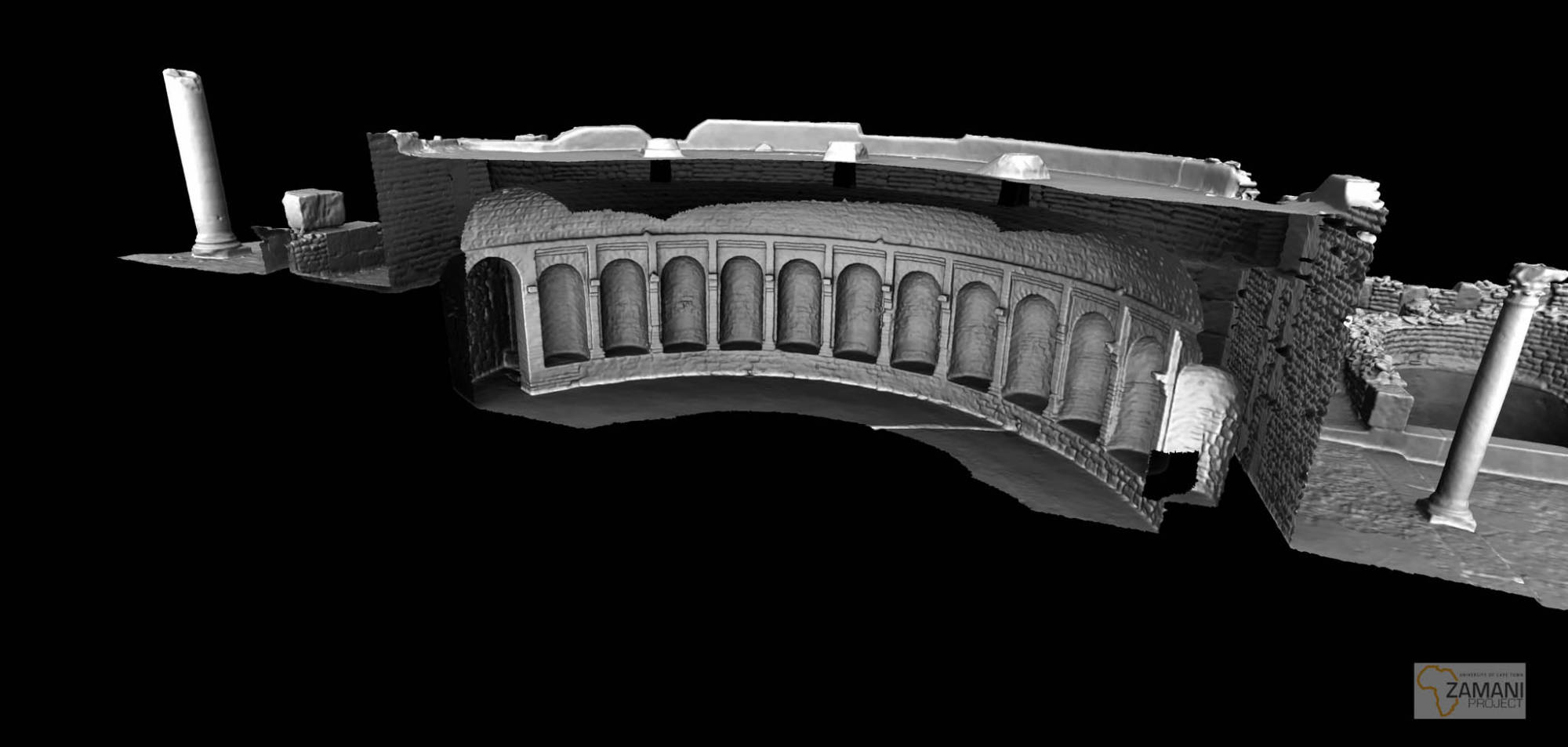

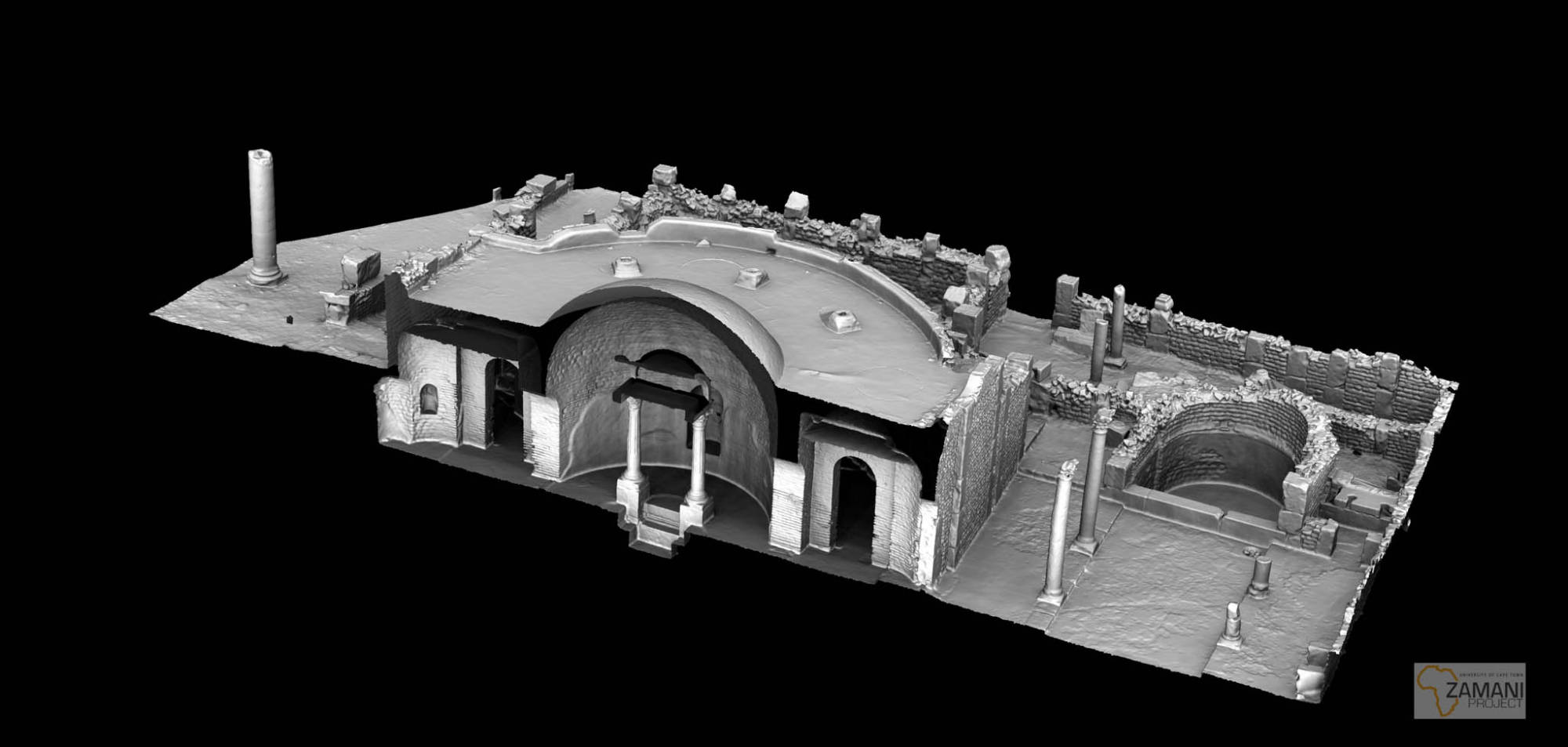

The model shows the inside of the Baptistry, by creating a section through the model.
114 laser scans were captured of this structure to create the 3D model.
Full dome panoramas capture a full 360-degree view from a single position. Individual full dome panoramas can be merged into a panorama tour, which allows a user to freely move from one panorama position to another.

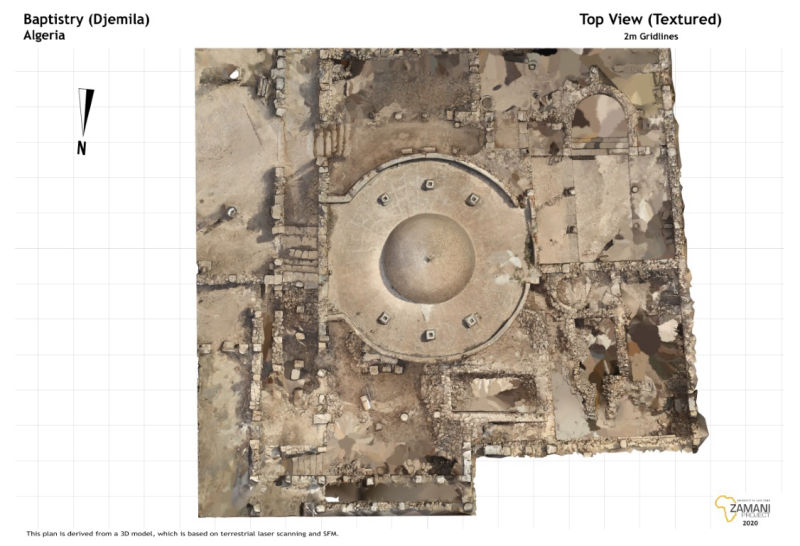

Baptistery Top View
Baptistery Top View

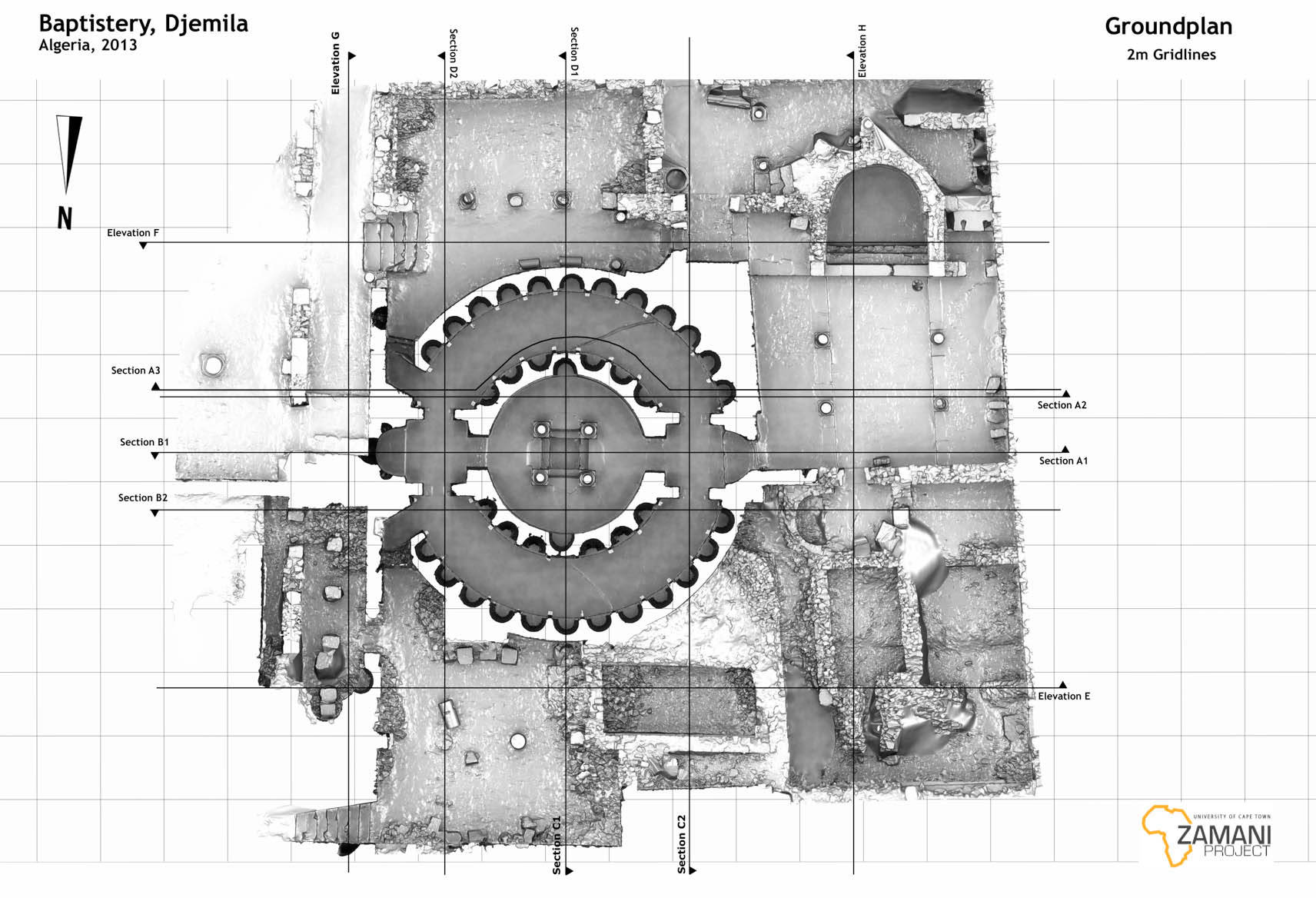

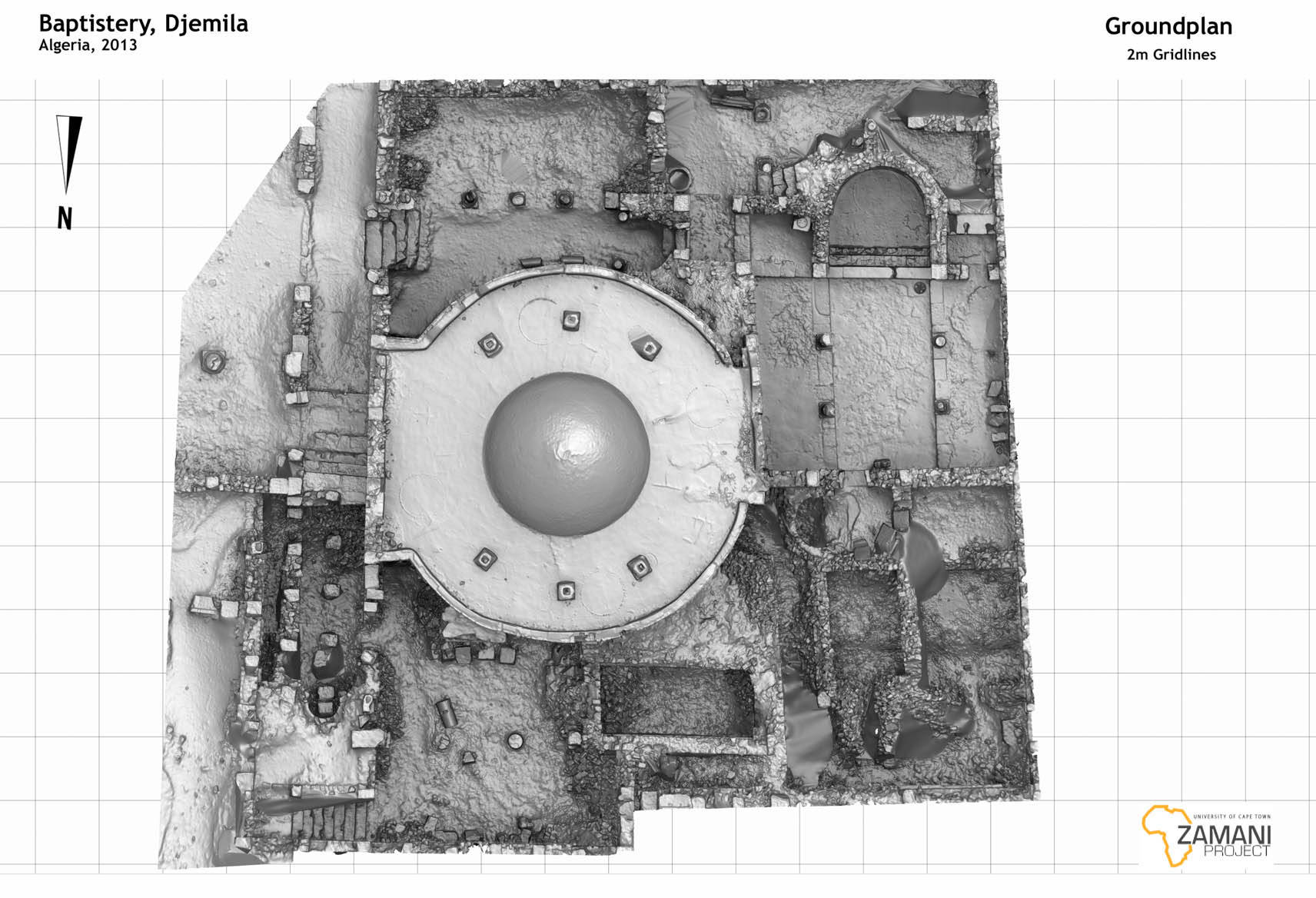

Baptistery Groundplan with sections

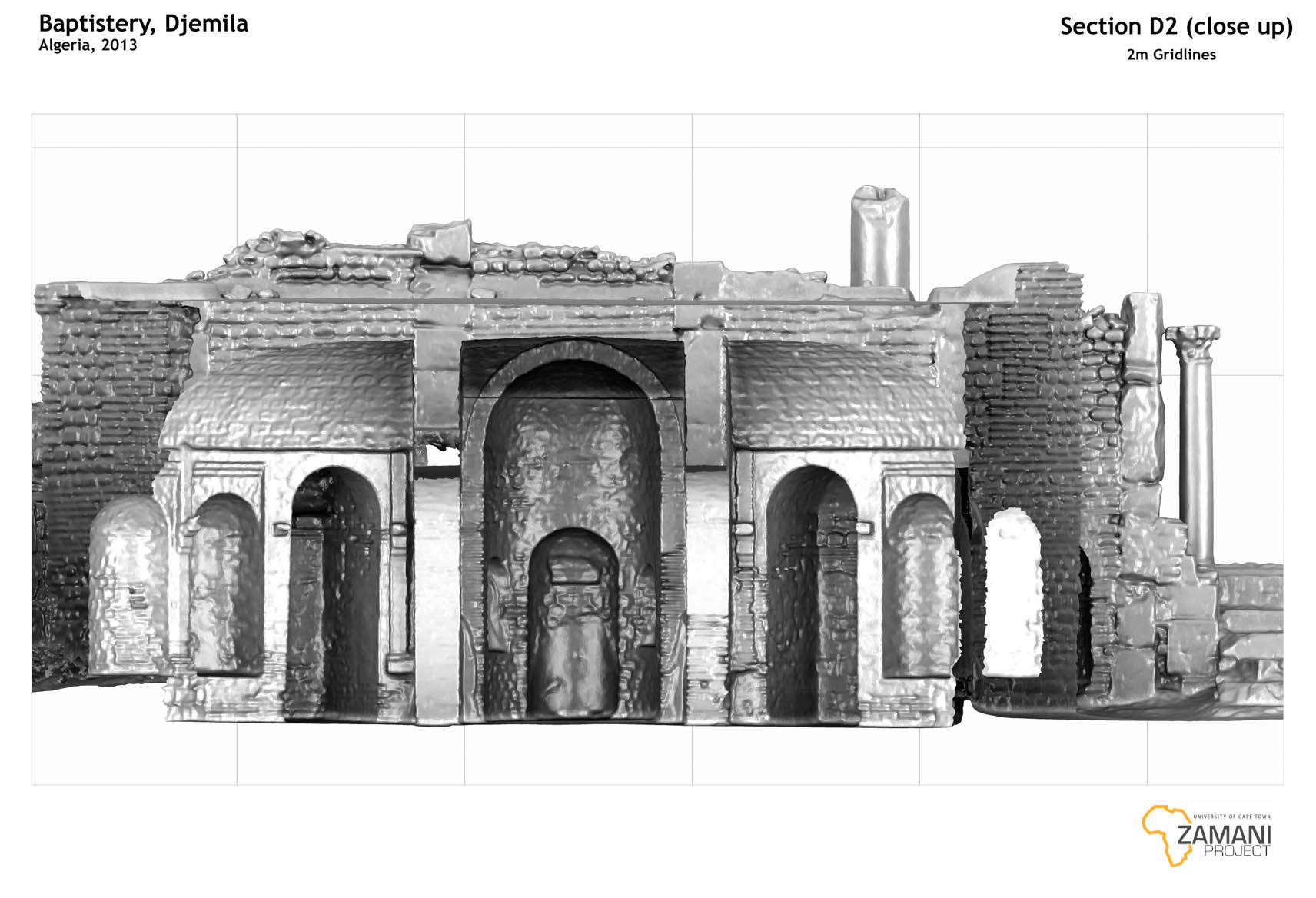

Baptistery closeup

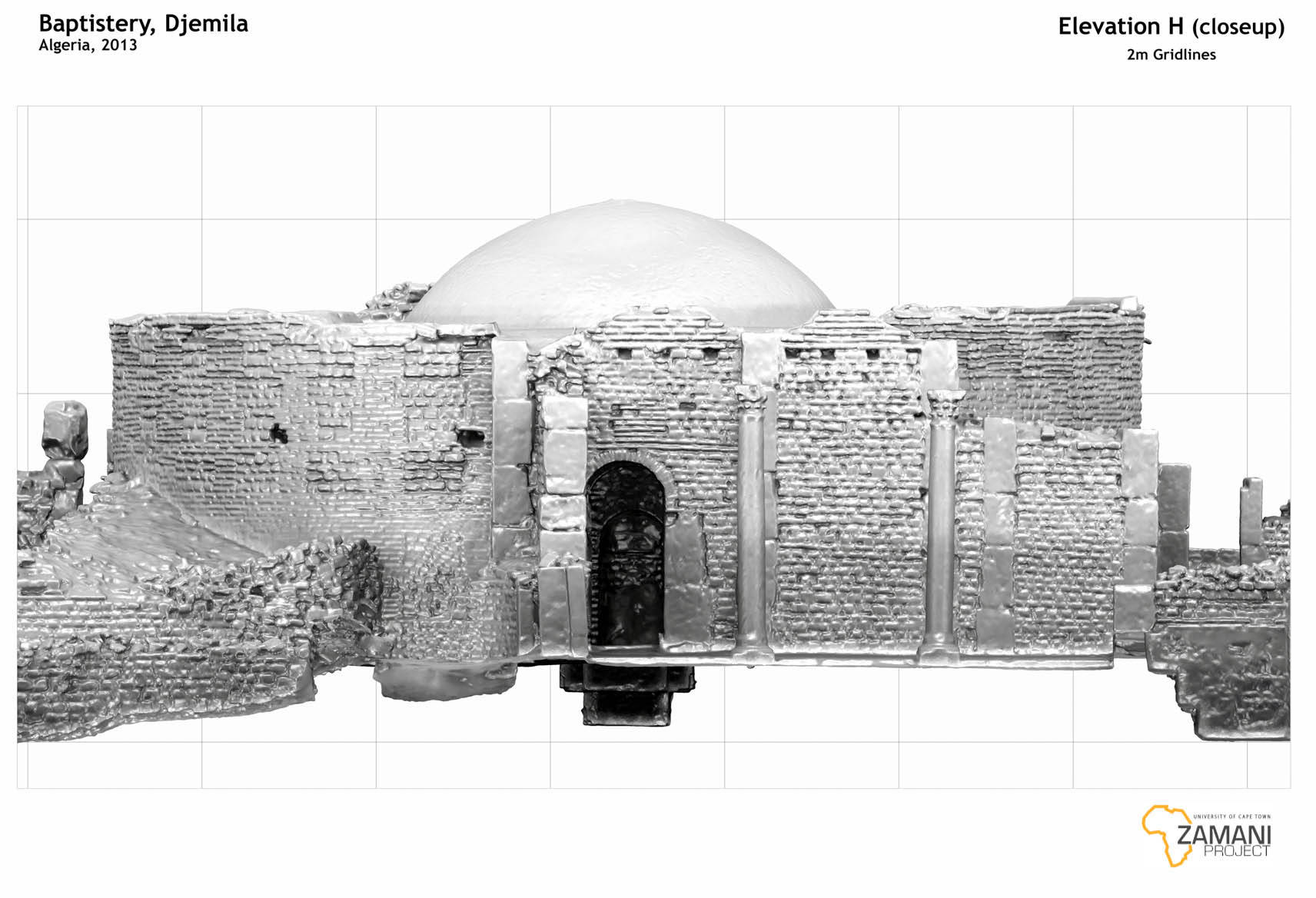

Baptistery Elevation H

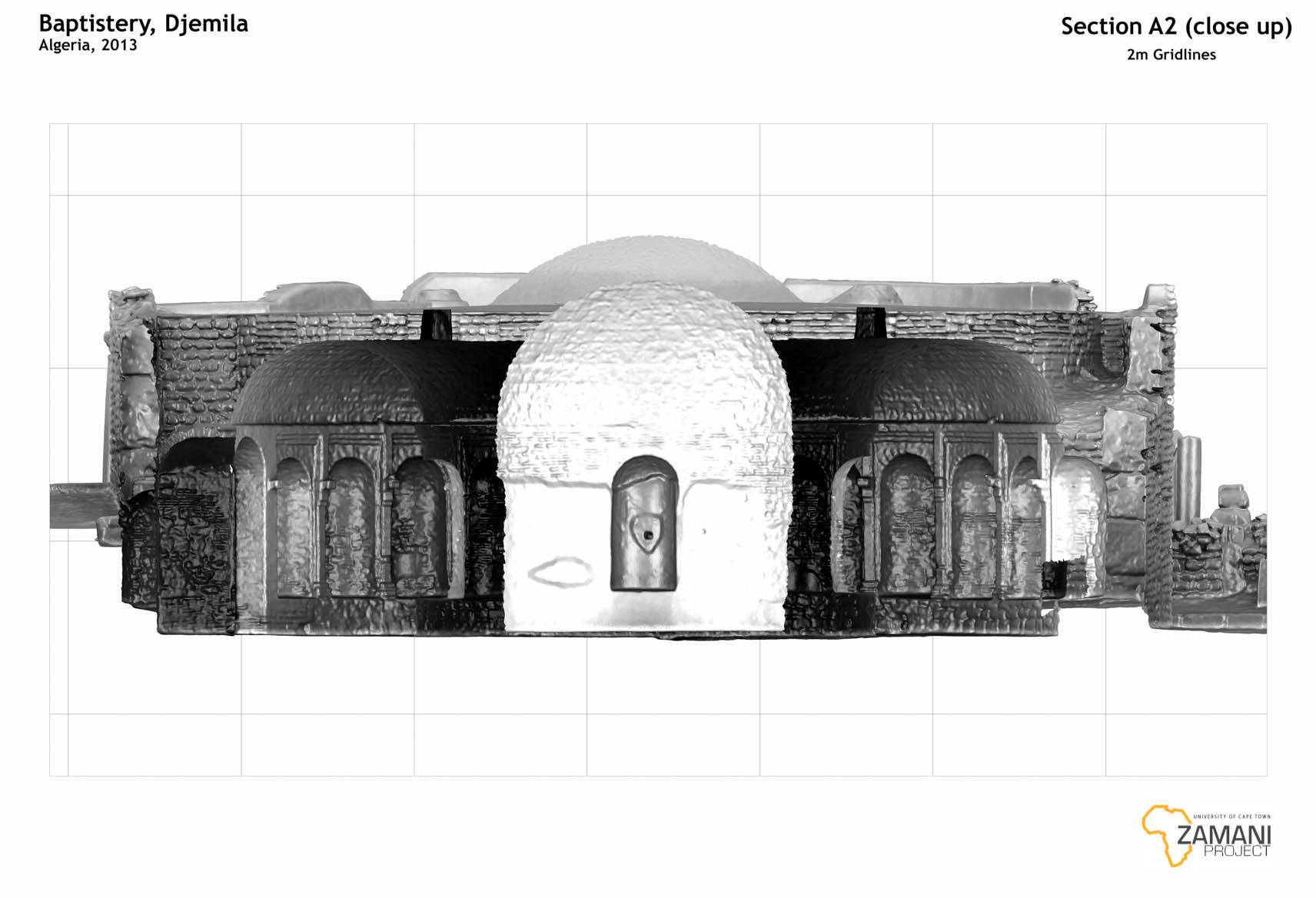

Baptistery Section A2

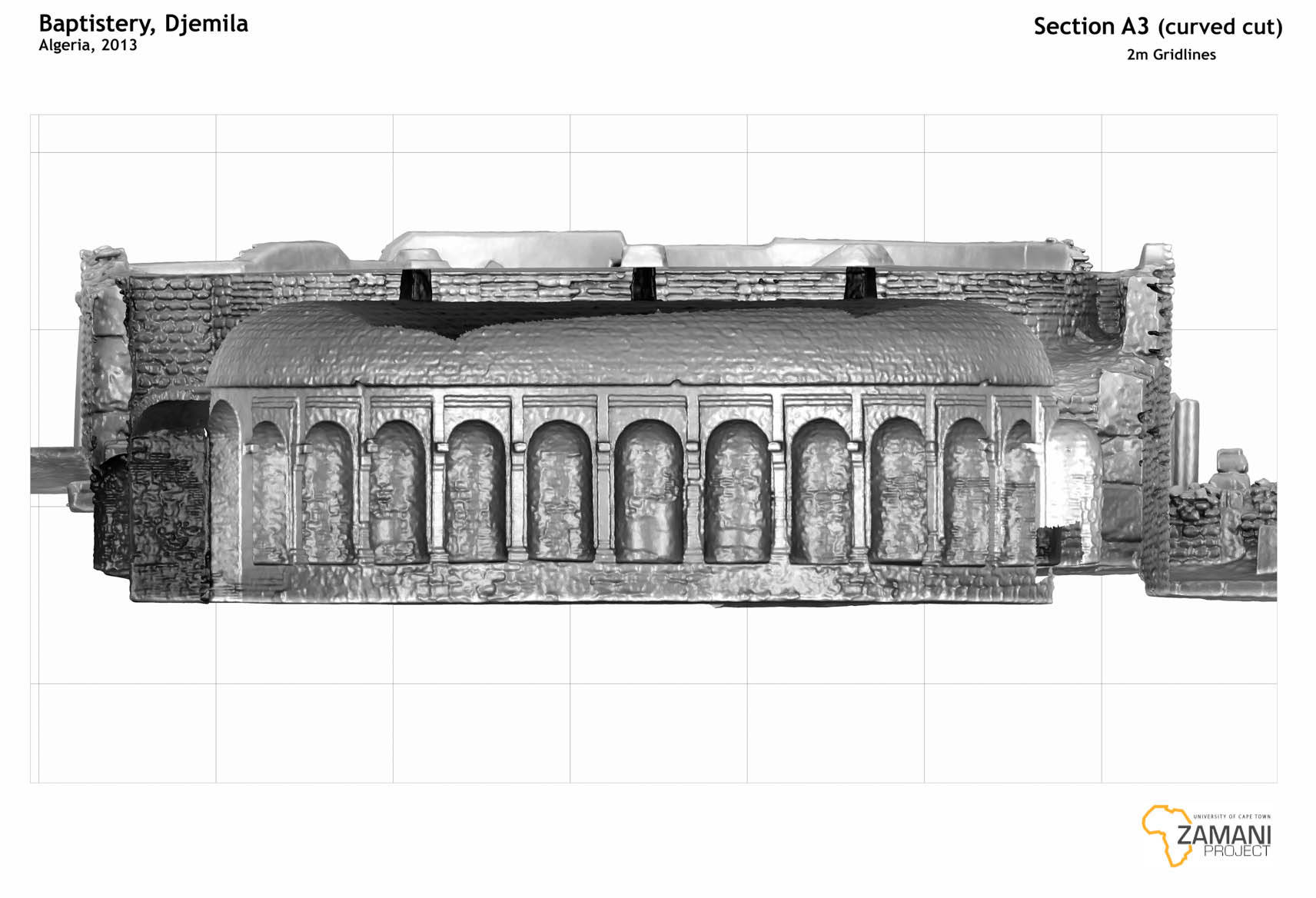

Baptistery Section A3

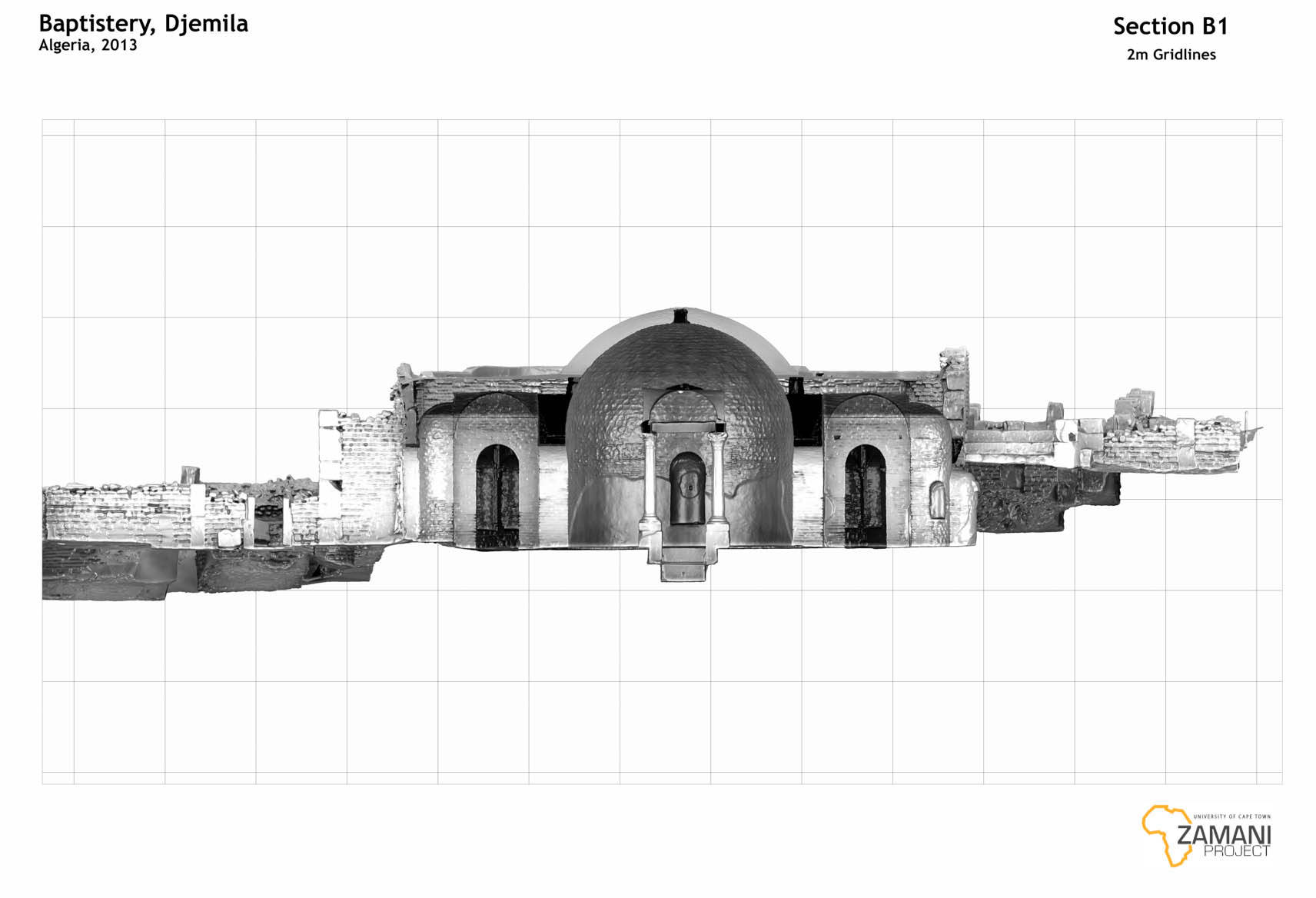

Baptistery Section B1

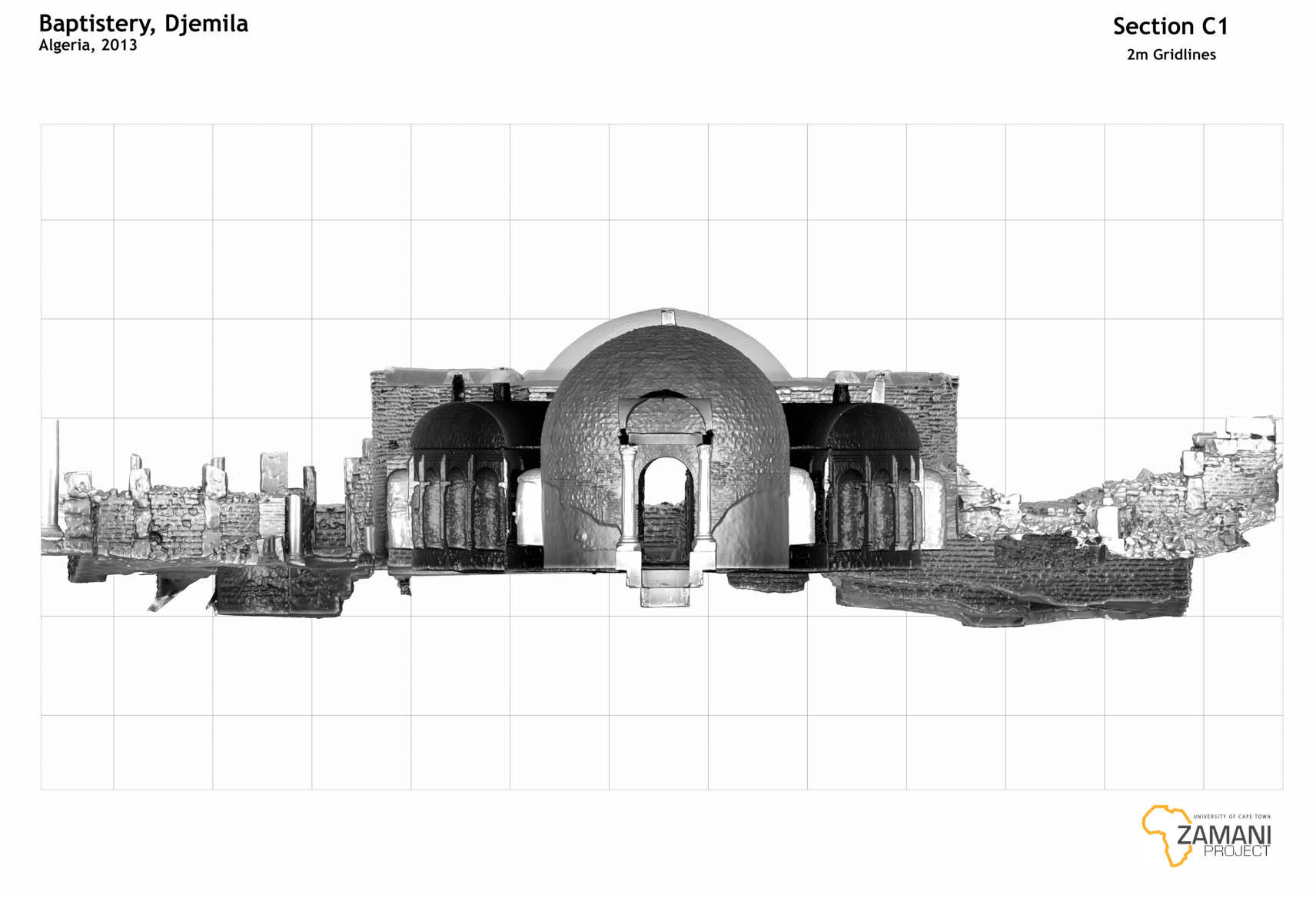

Baptistery Section C1

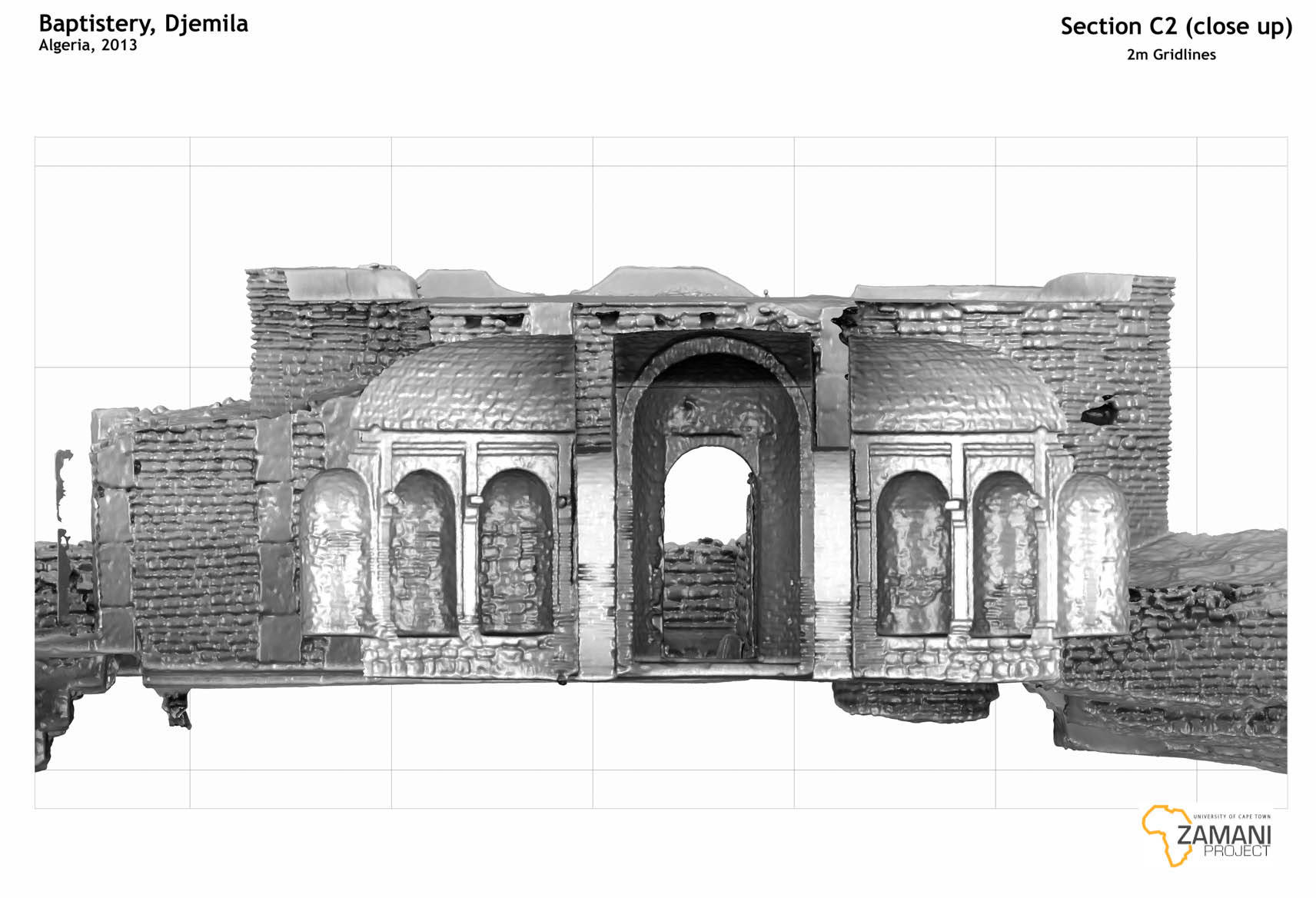

Baptistery Section C2
Baptistery Section B1

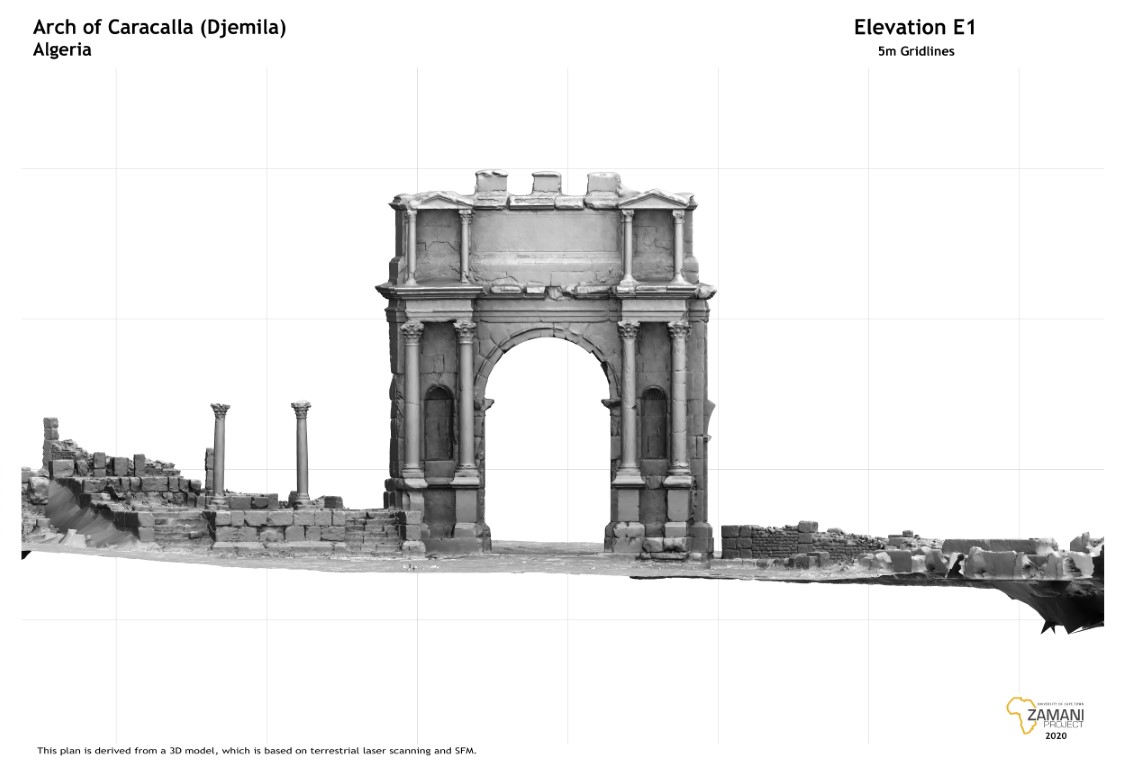

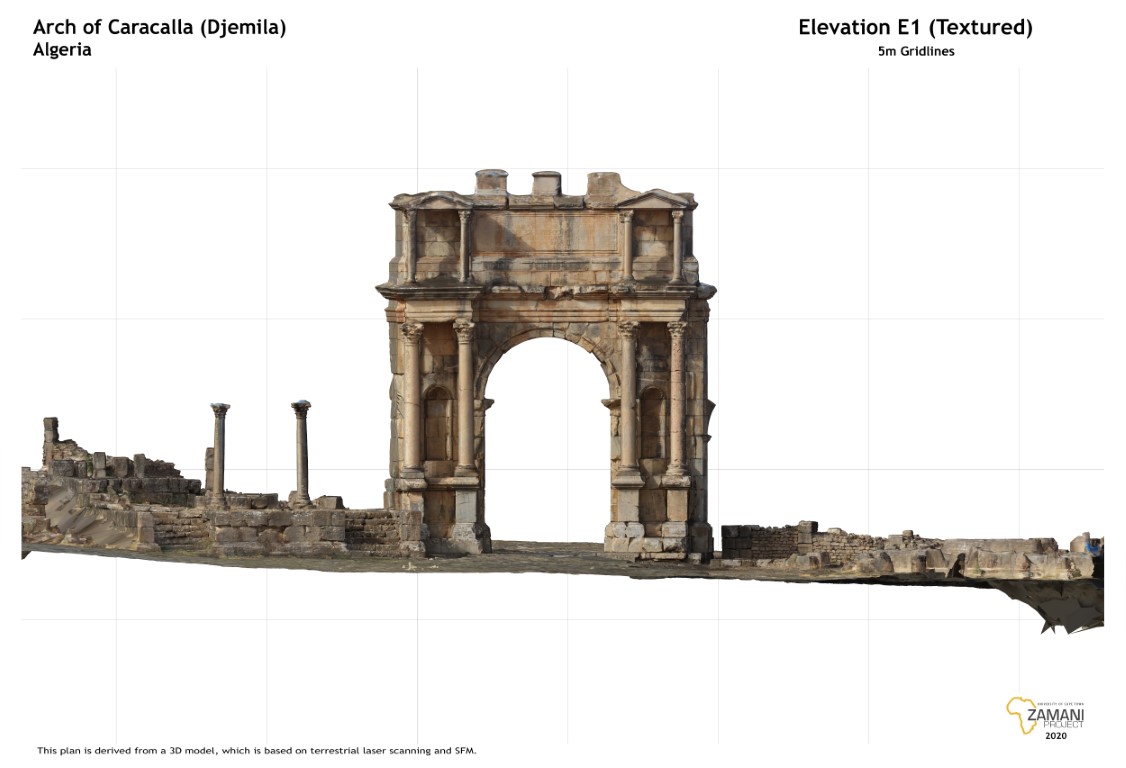

Arch of Caracalla Elevation E1

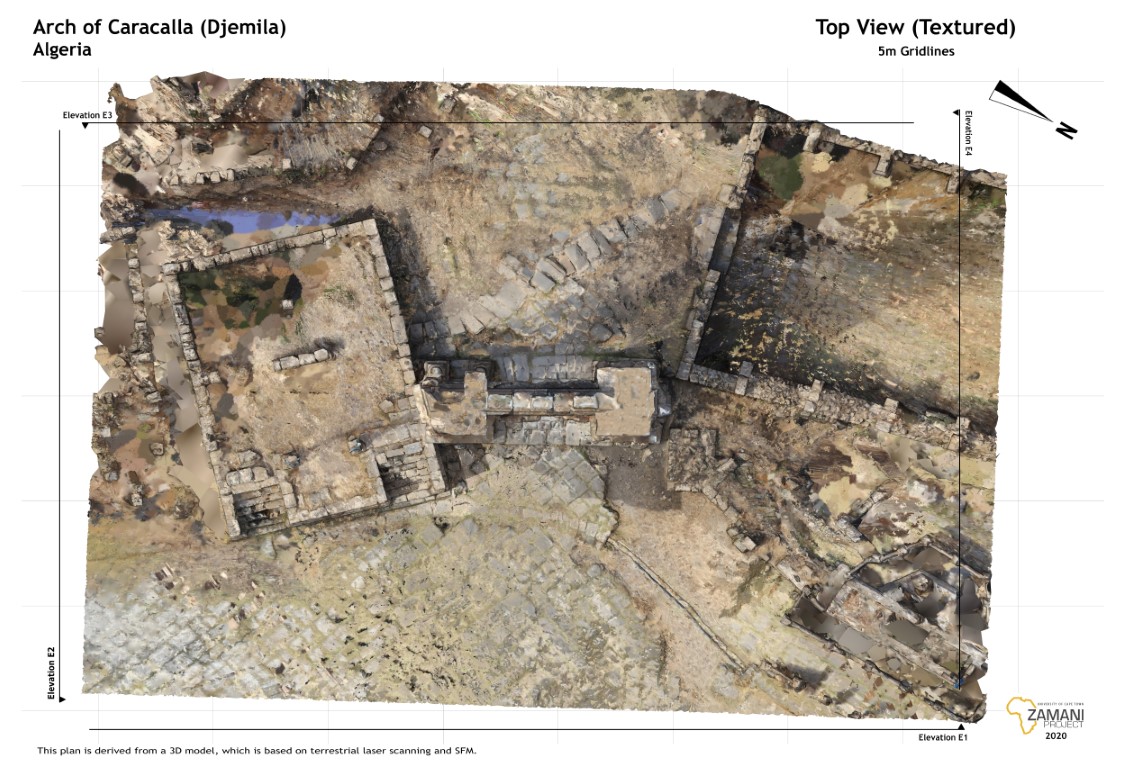

Arch of Caracalla Top View

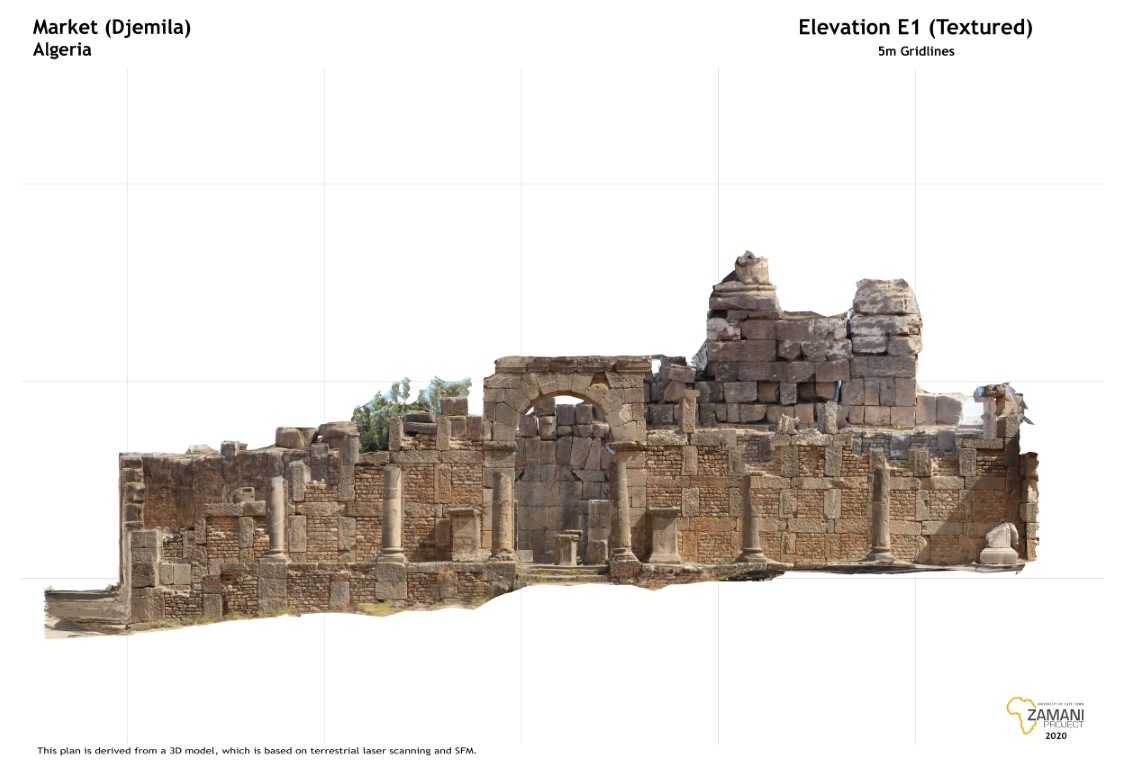

Market Elevation E1

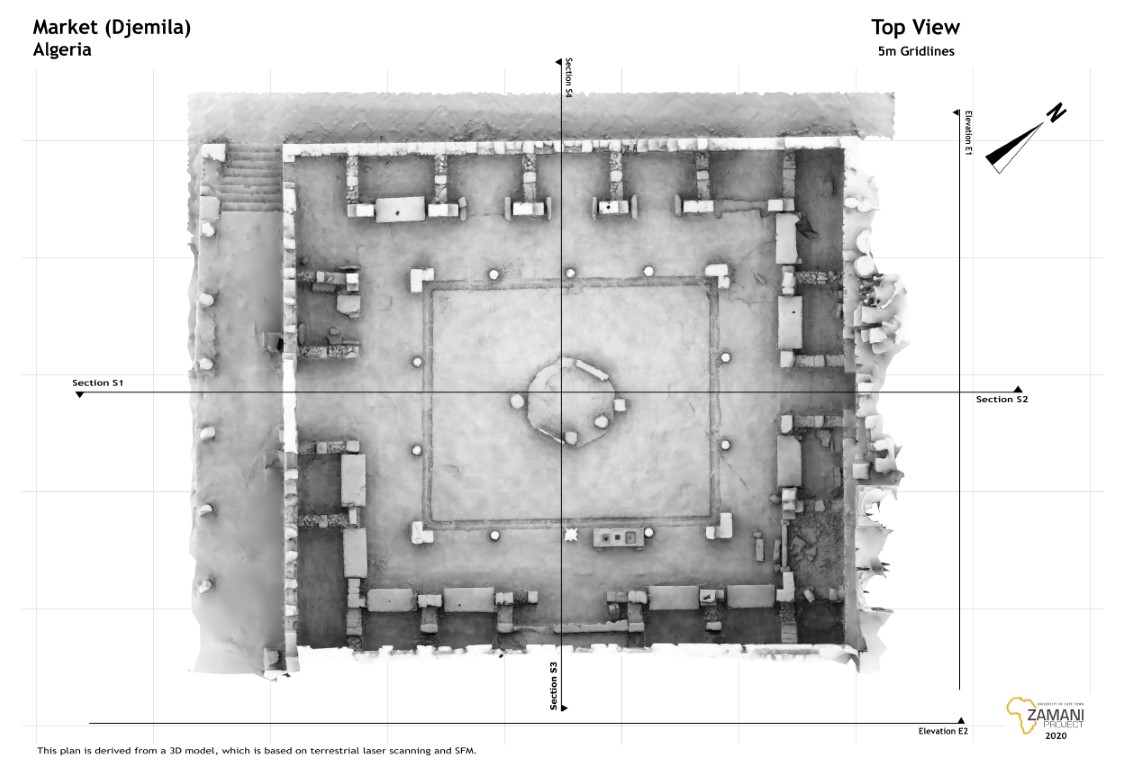

Market Top View

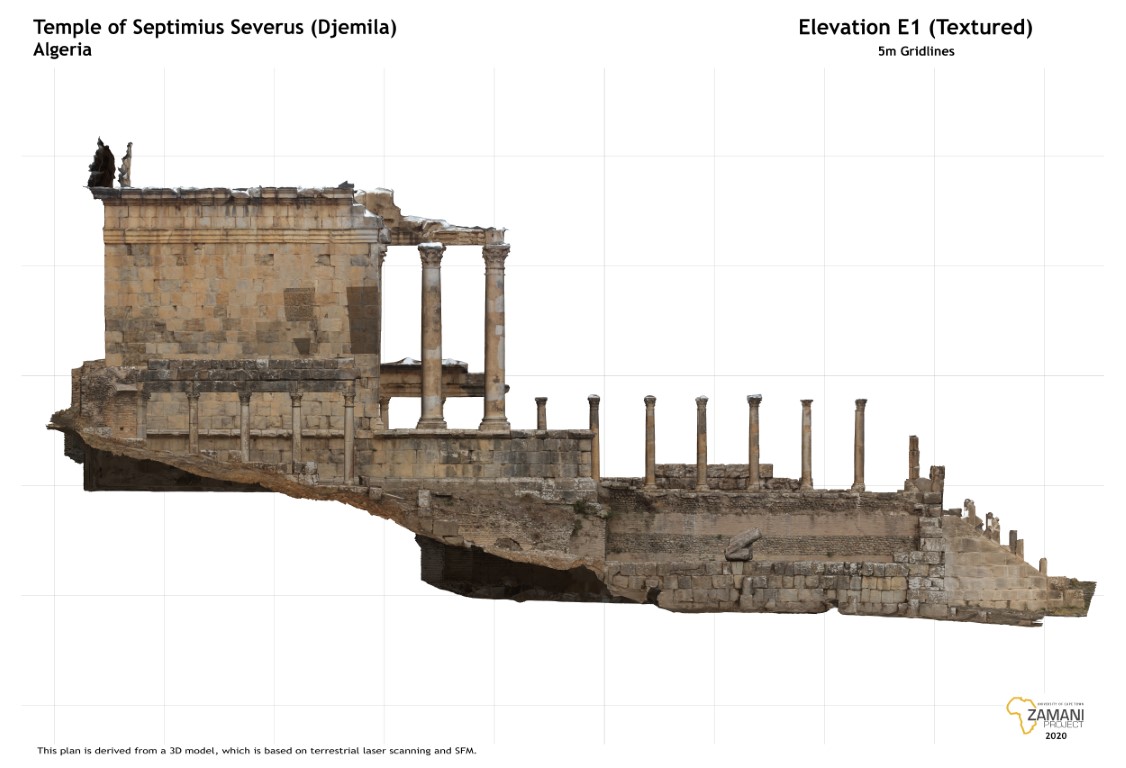

Temple of Septimius Severus Elevation E1

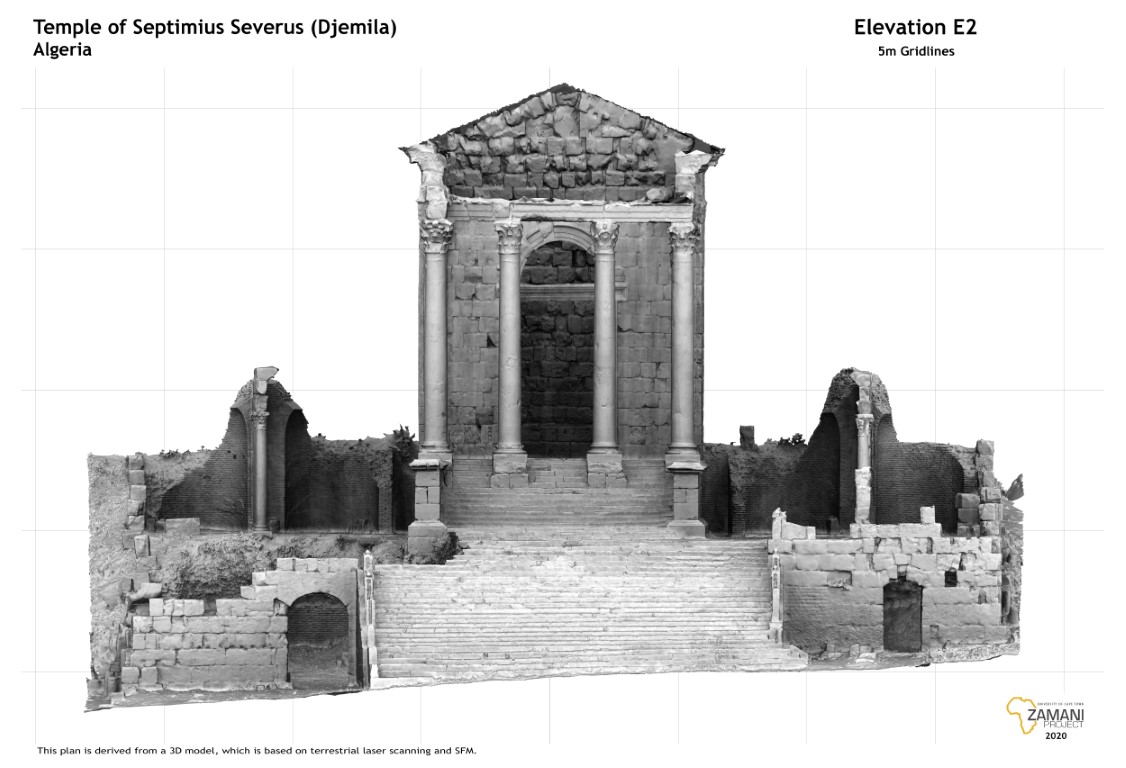

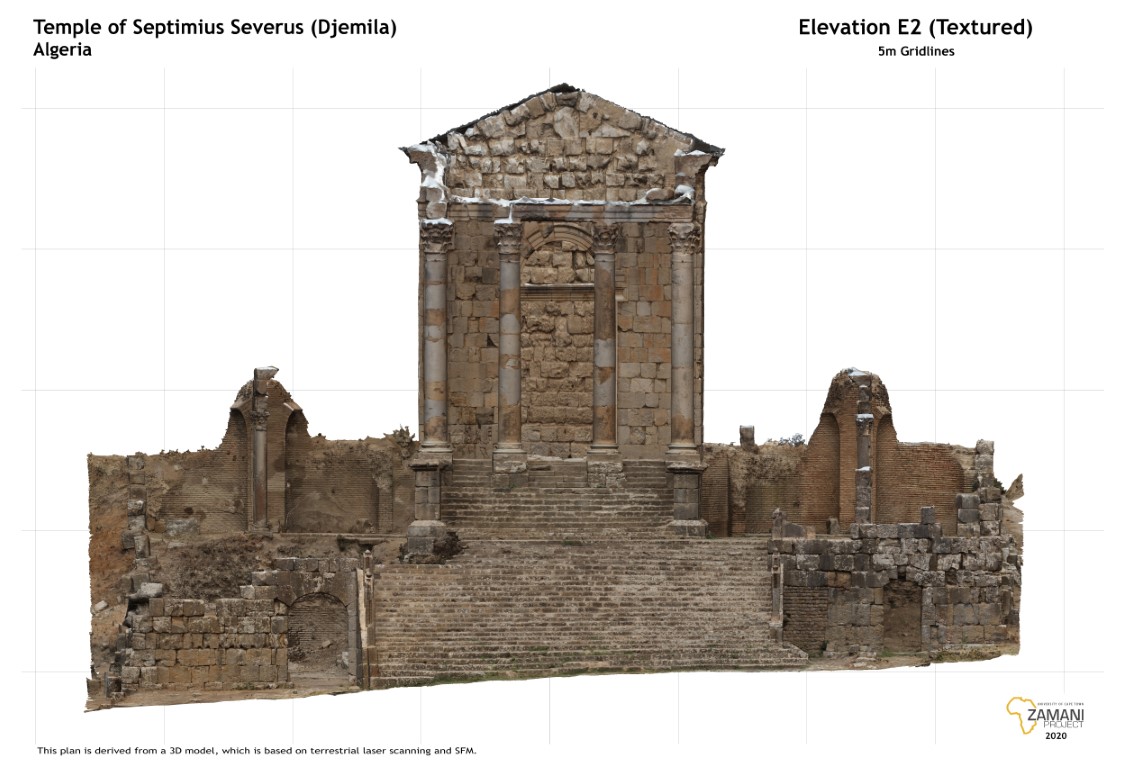

Temple of Septimius Severus Elevation E2
Temple of Septimius Severus Elevation E1

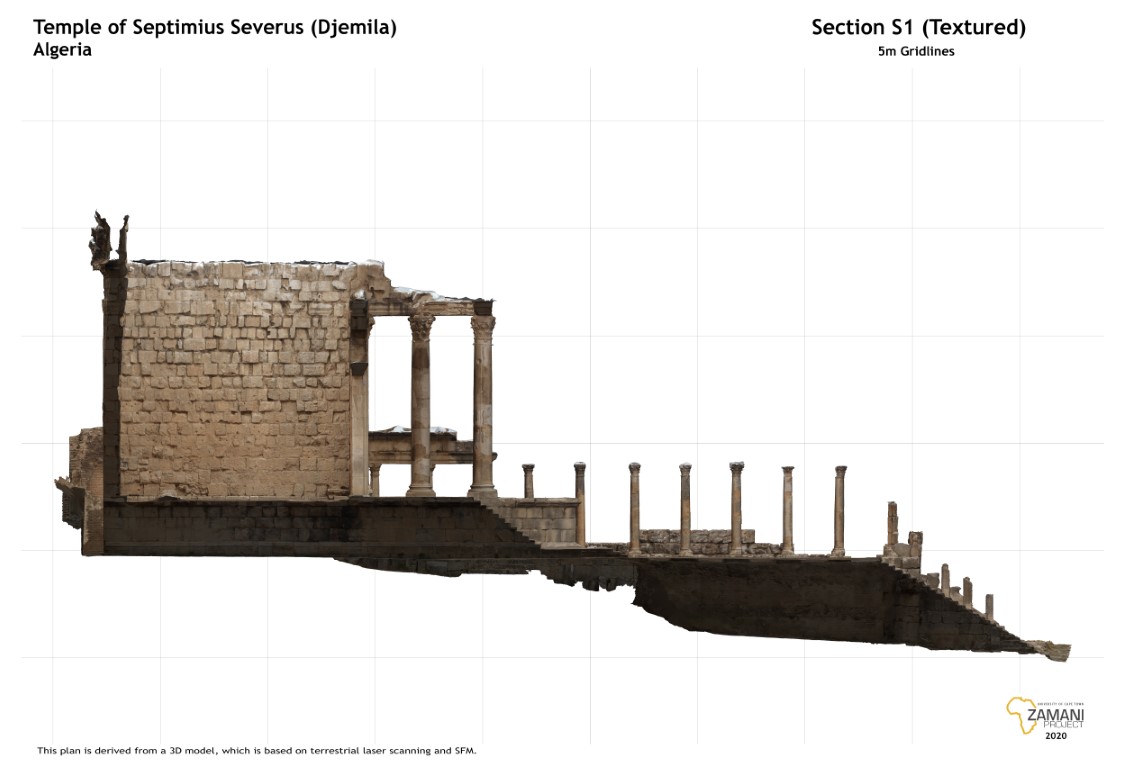

Temple of Septimius Severus Section S1

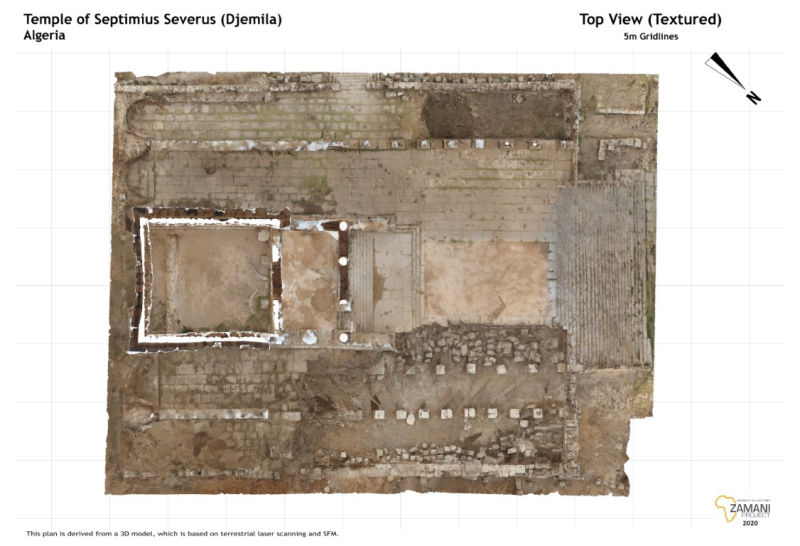

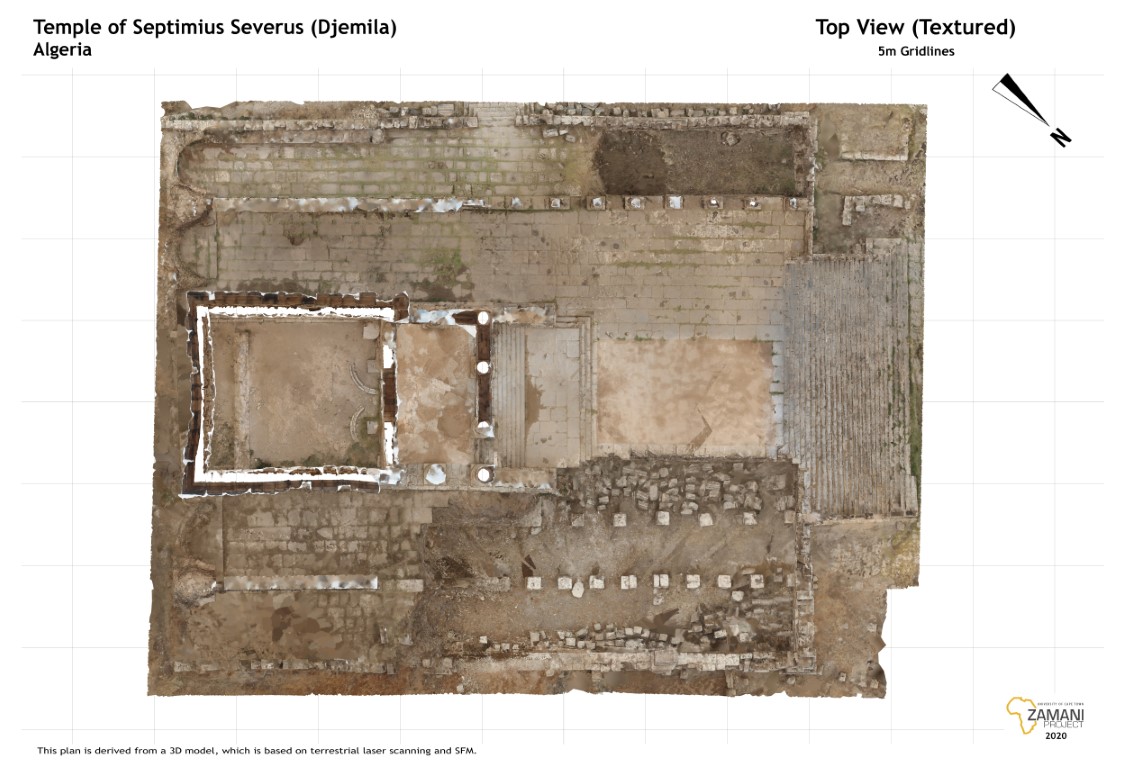

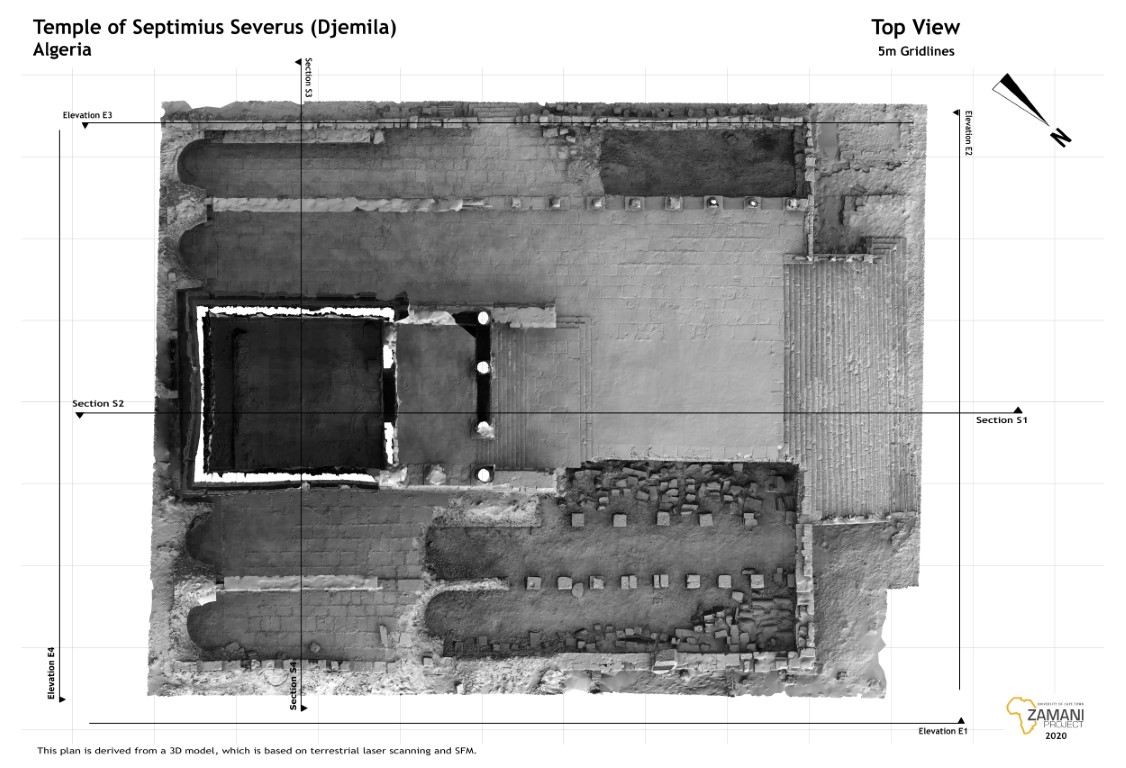

Temple of Septimius Severus Top View
Temple of Septimius Severus Top View

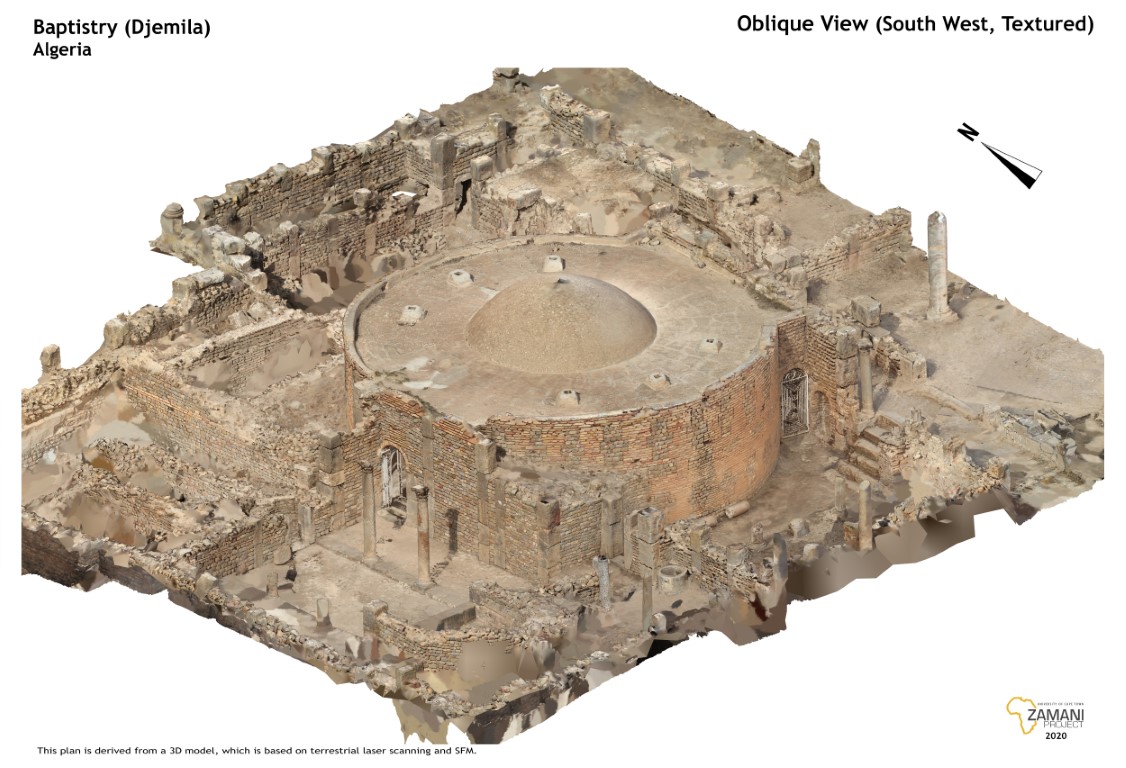

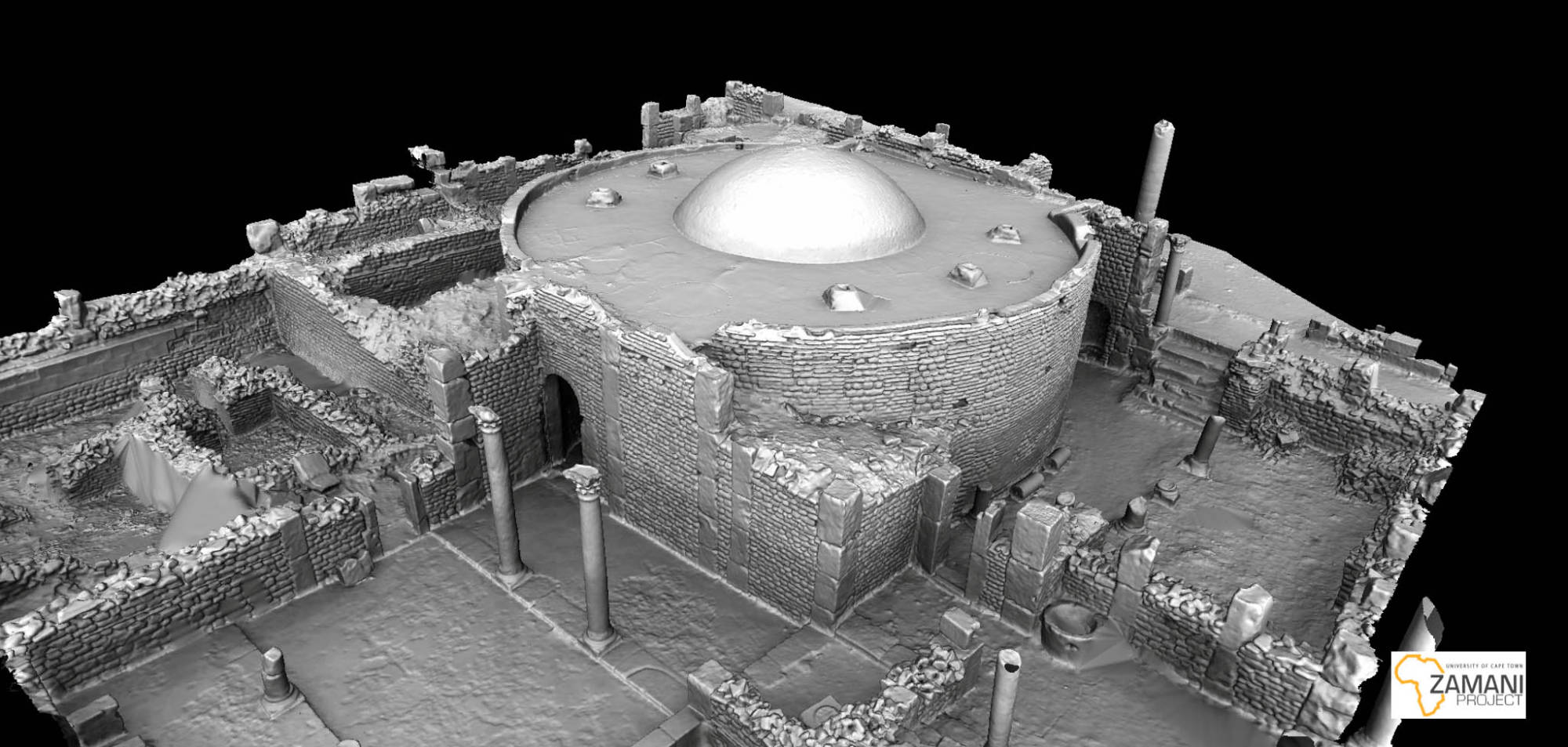

Image of 3D model: Baptistery
Image of 3D model: Baptistery

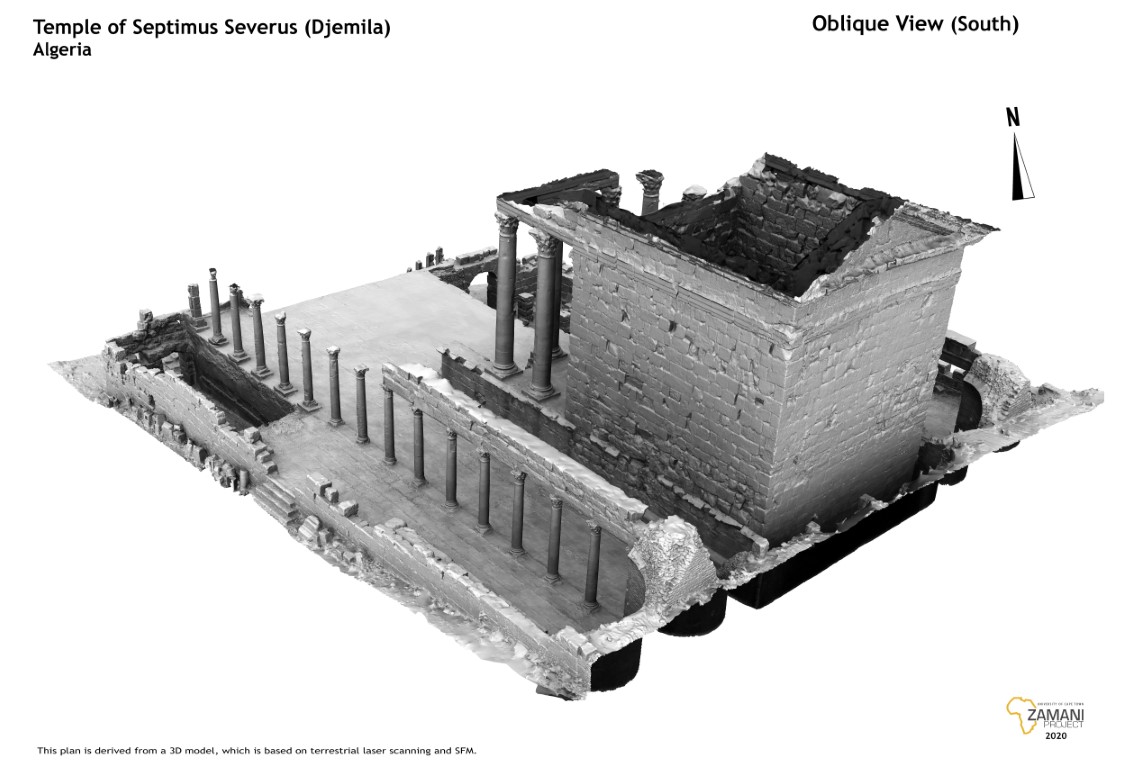

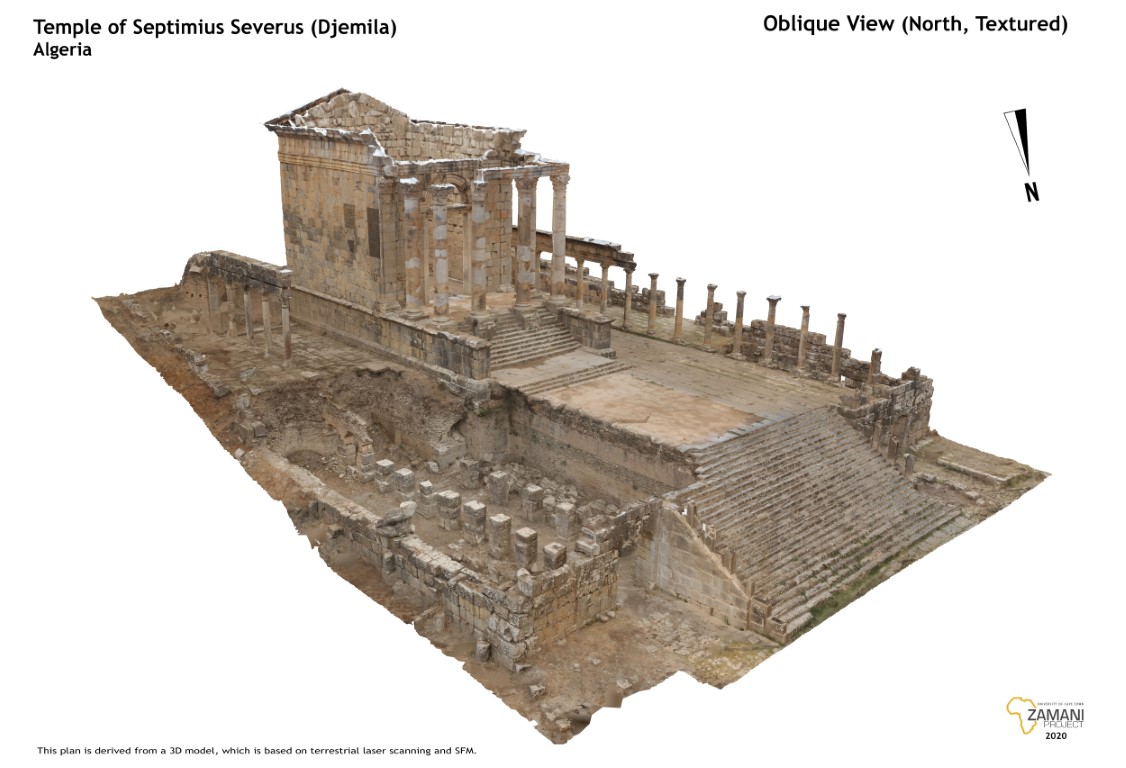

Image of 3D model: Temple of Septimius Severus
Image of 3D model: Baptistery
Image of 3D model: Temple of Septimius Severus

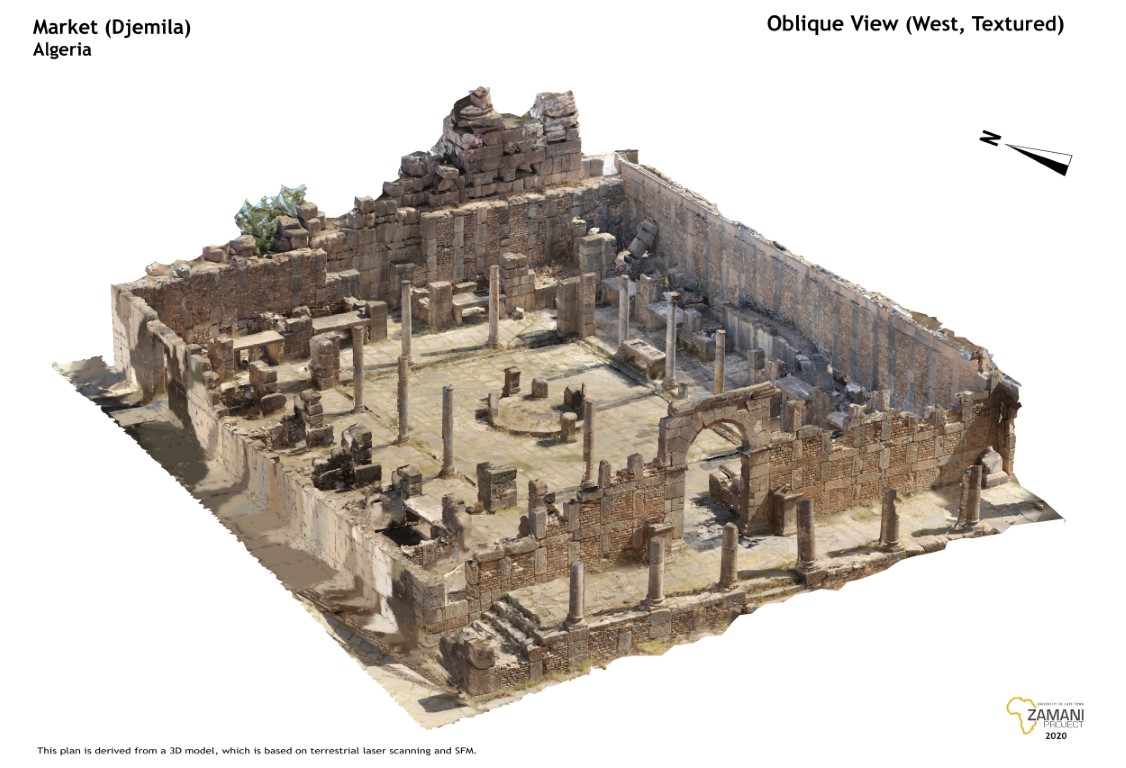

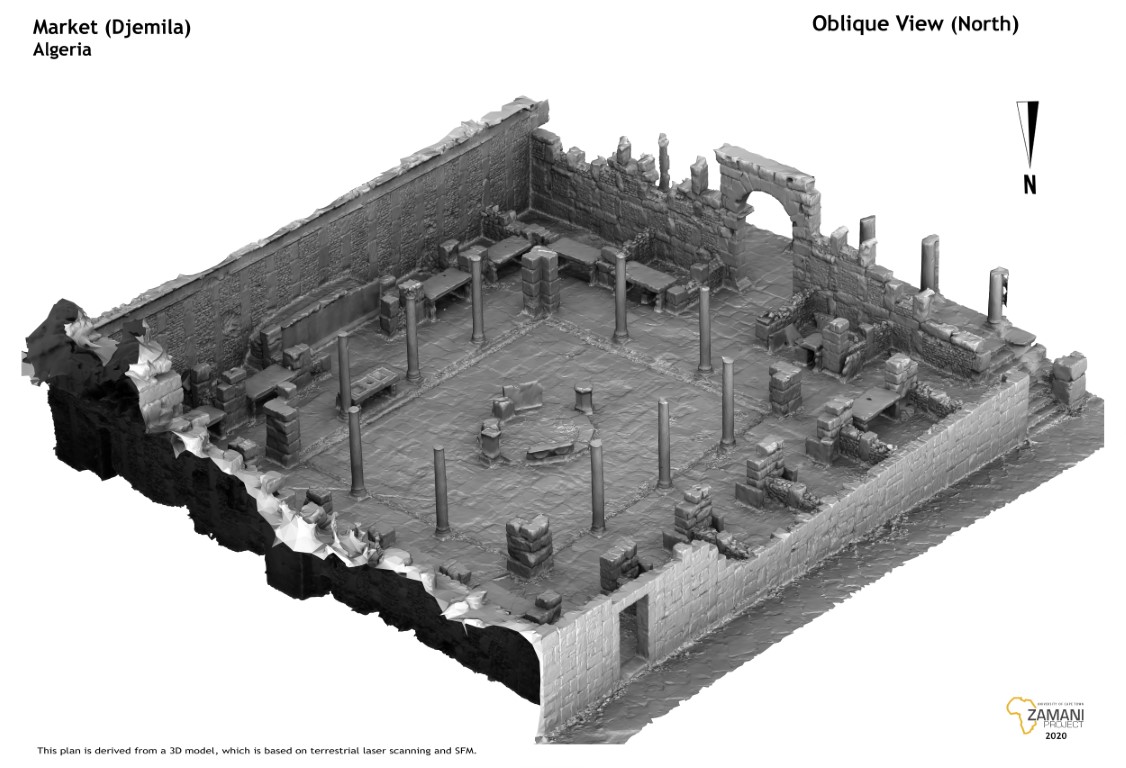

Image of 3D model: Market
Image of 3D model: Market

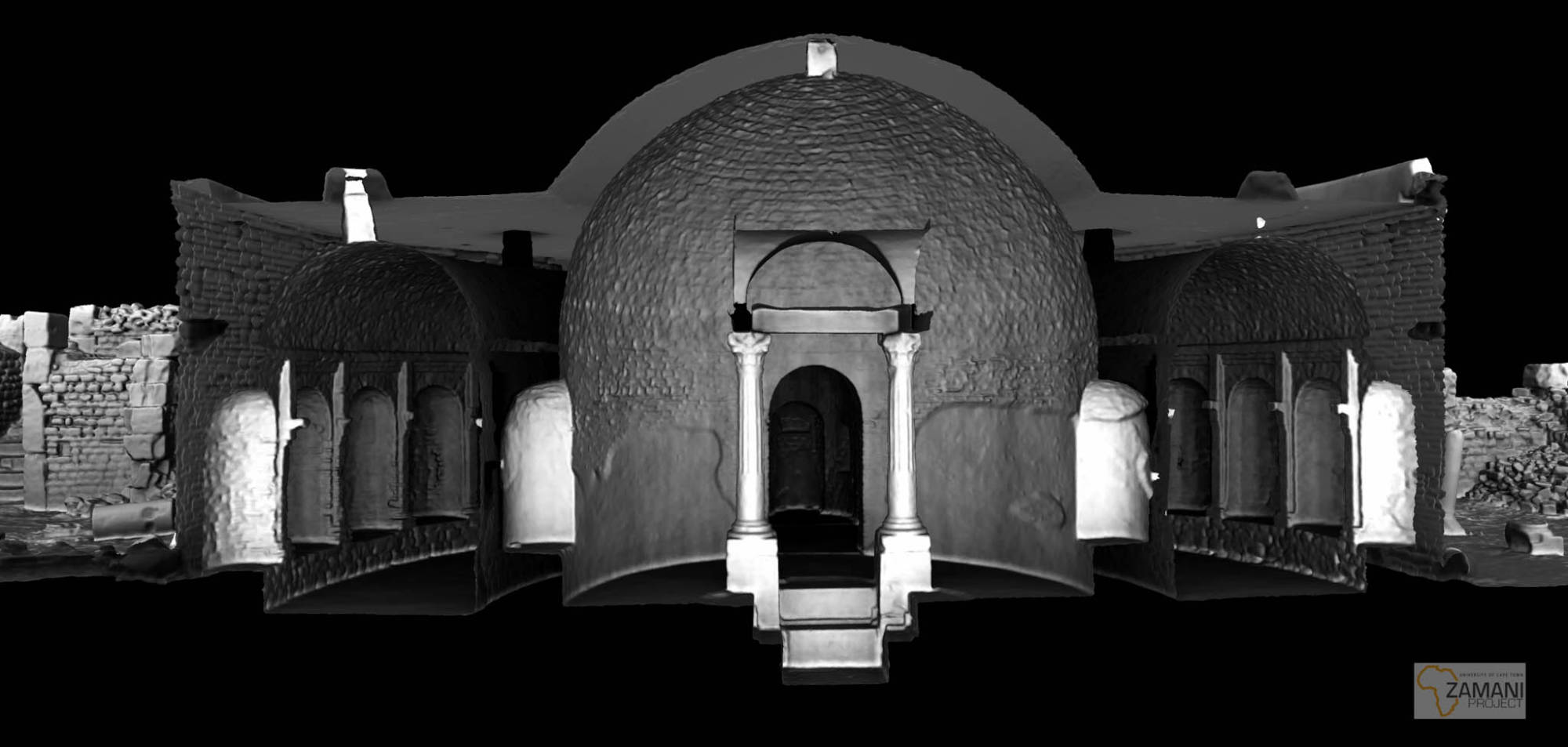

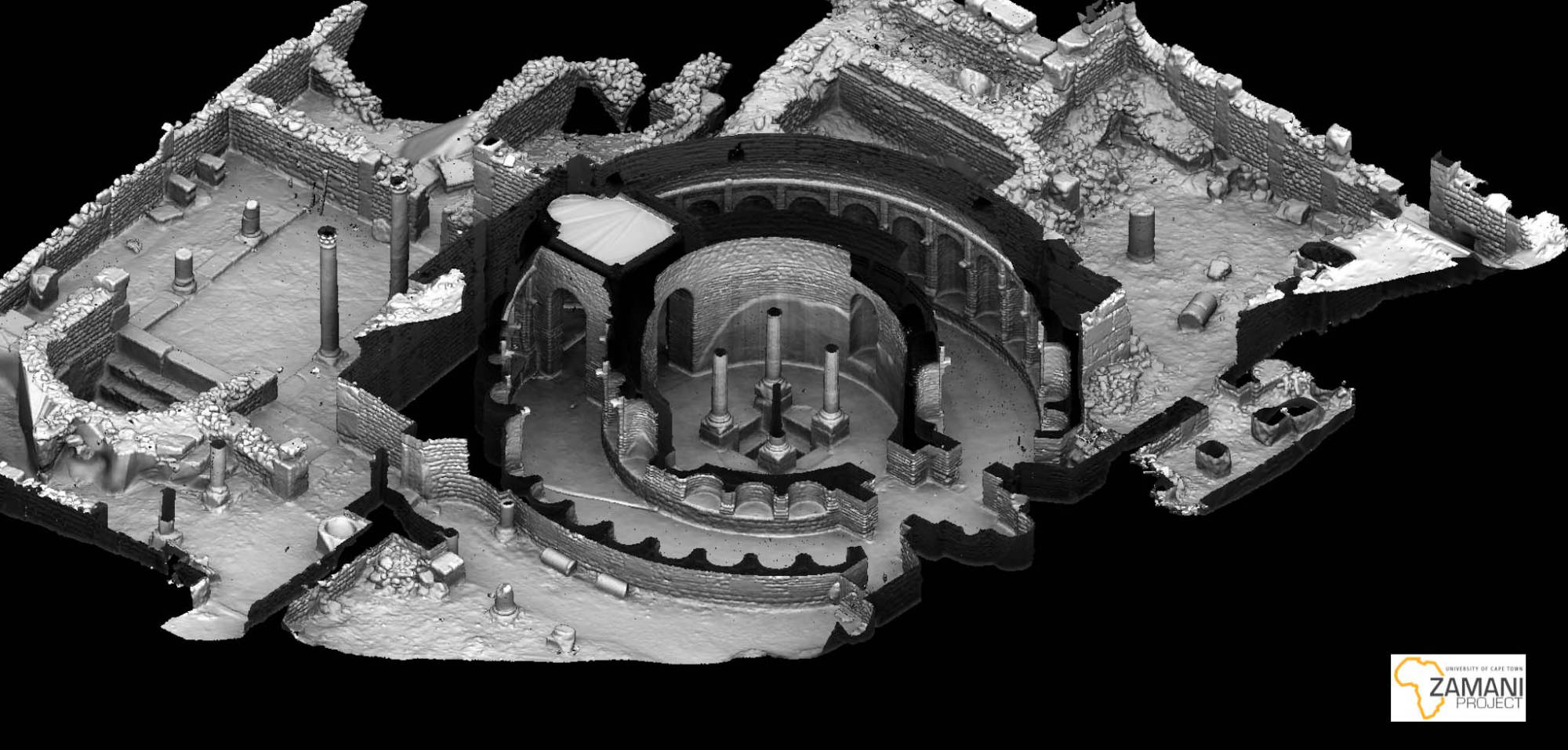

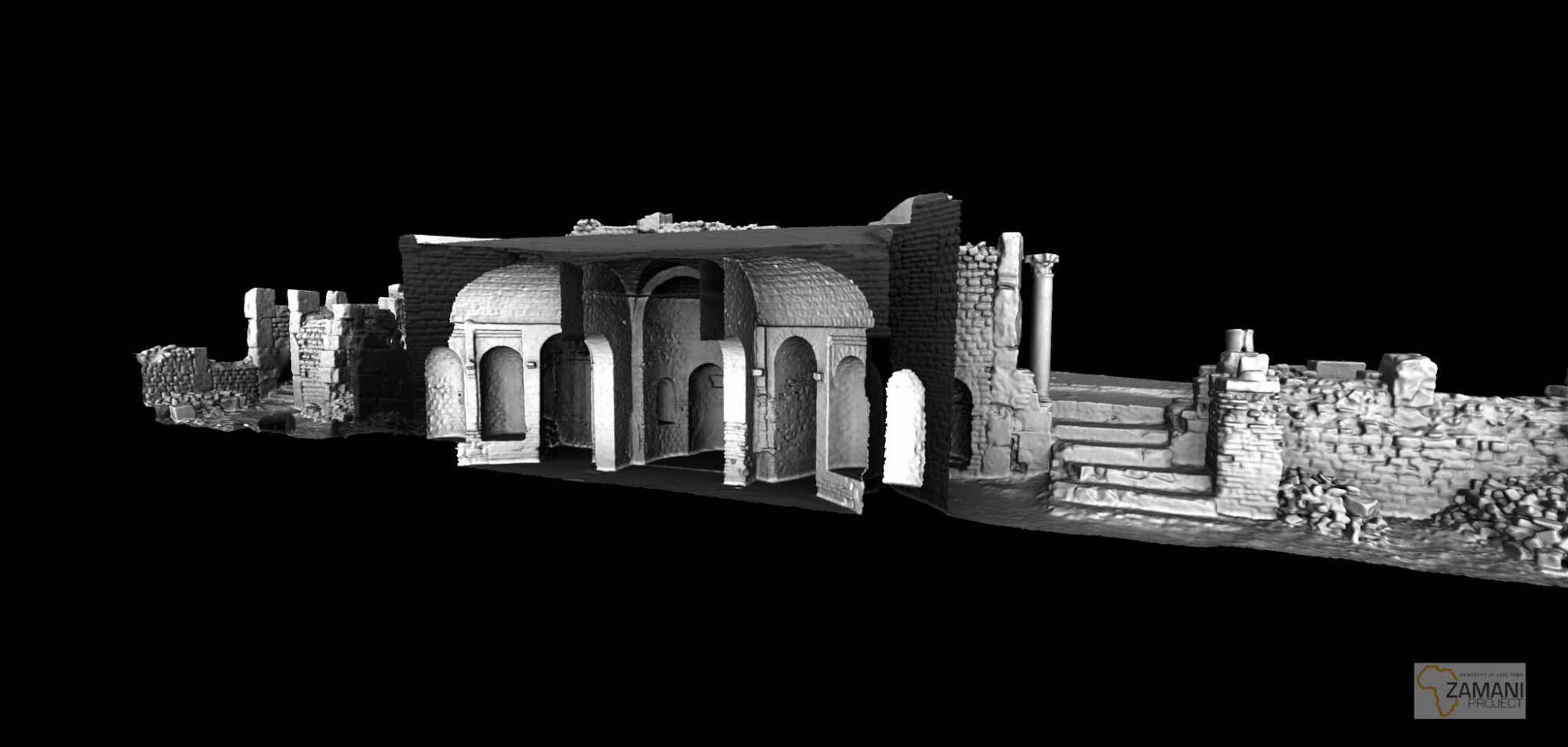

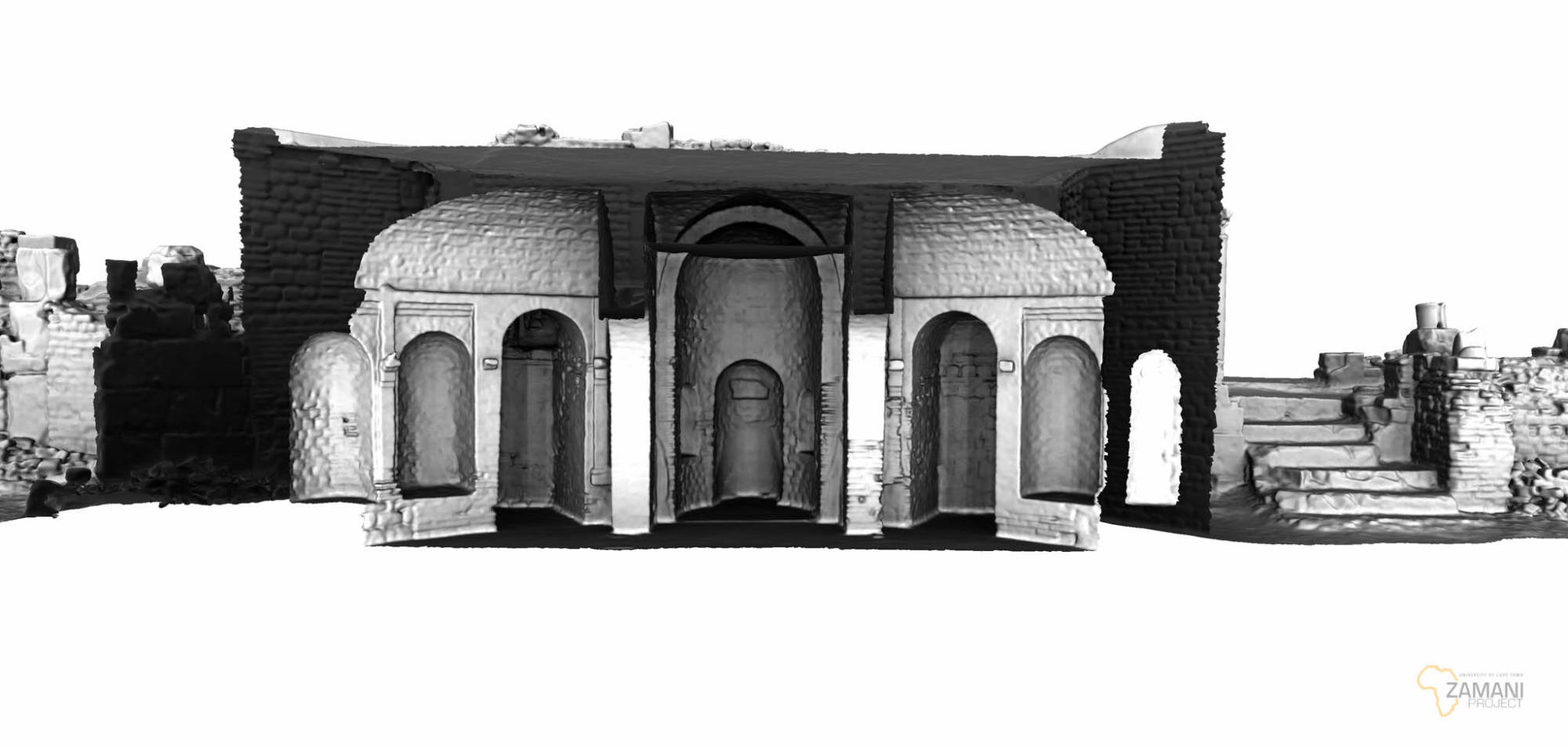

Image of 3D model: Baptistery (cut open)
Image of 3D model: Baptistery (cut open)

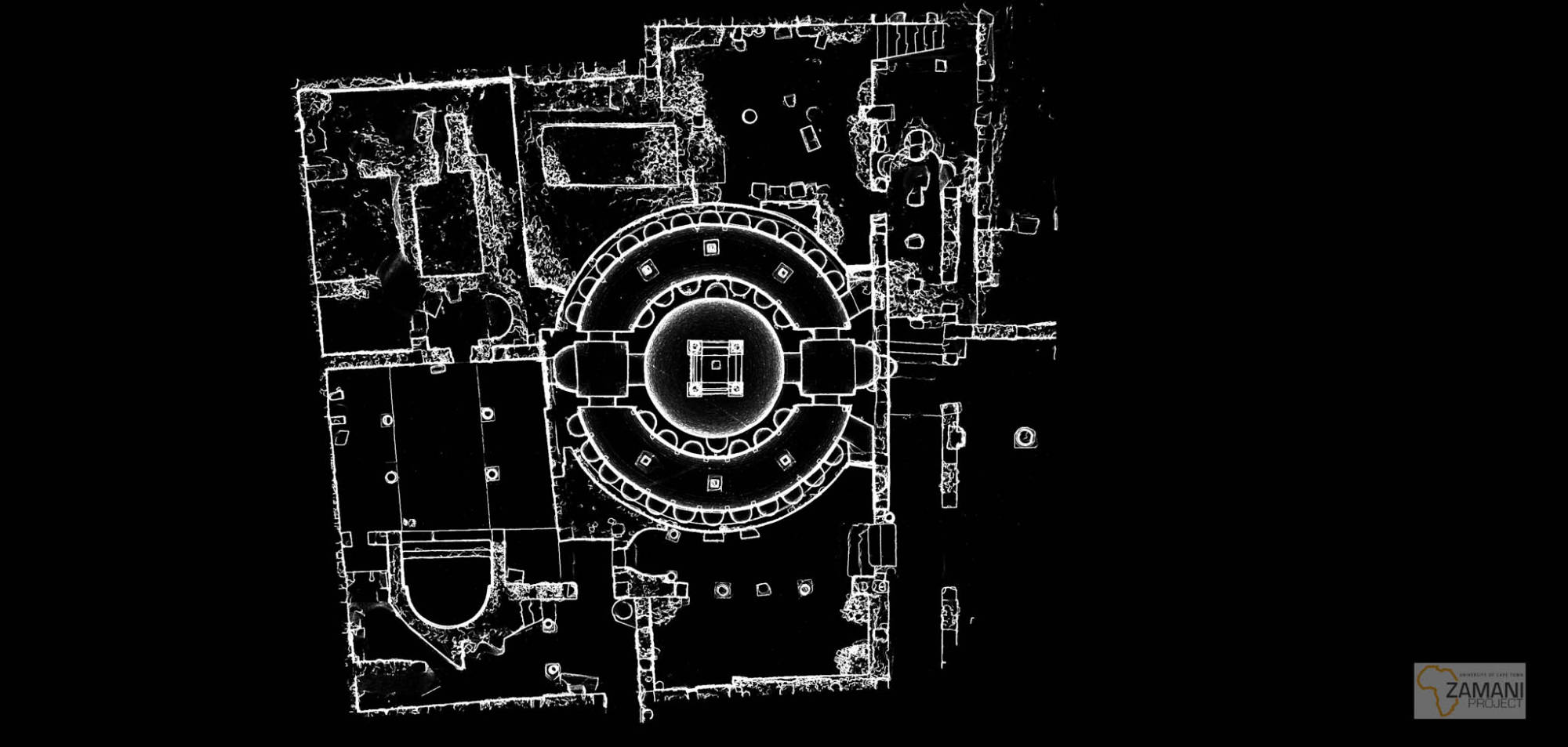

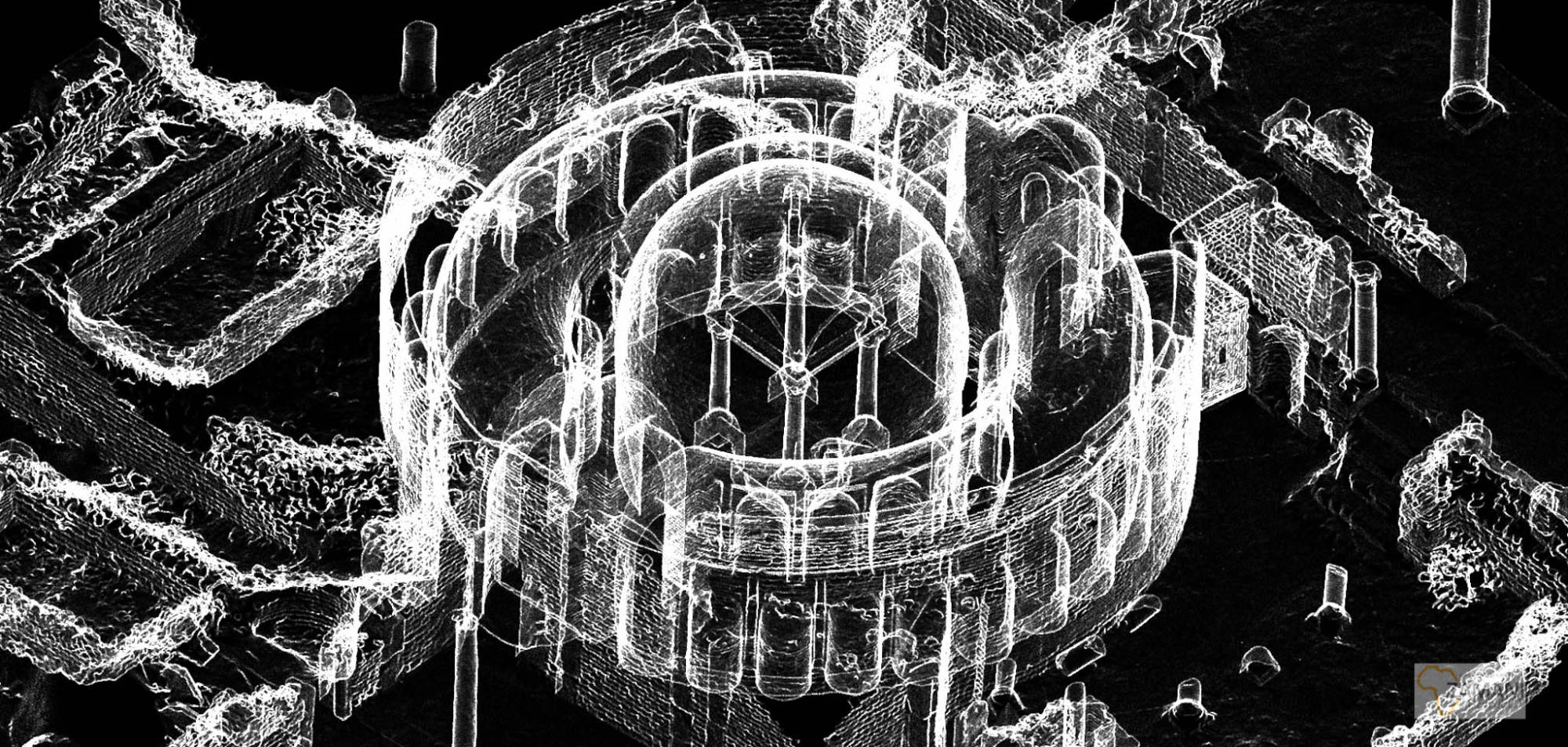

Image of 3D model: Baptistery X-Ray
Image of 3D model: Baptistery X-Ray
Image of 3D model: Baptistery (cut open)
Image of 3D model: Baptistery (cut open)
Image of 3D model: Baptistery (cut open)
Image of 3D model: Baptistery (cut open)
